Surface 604

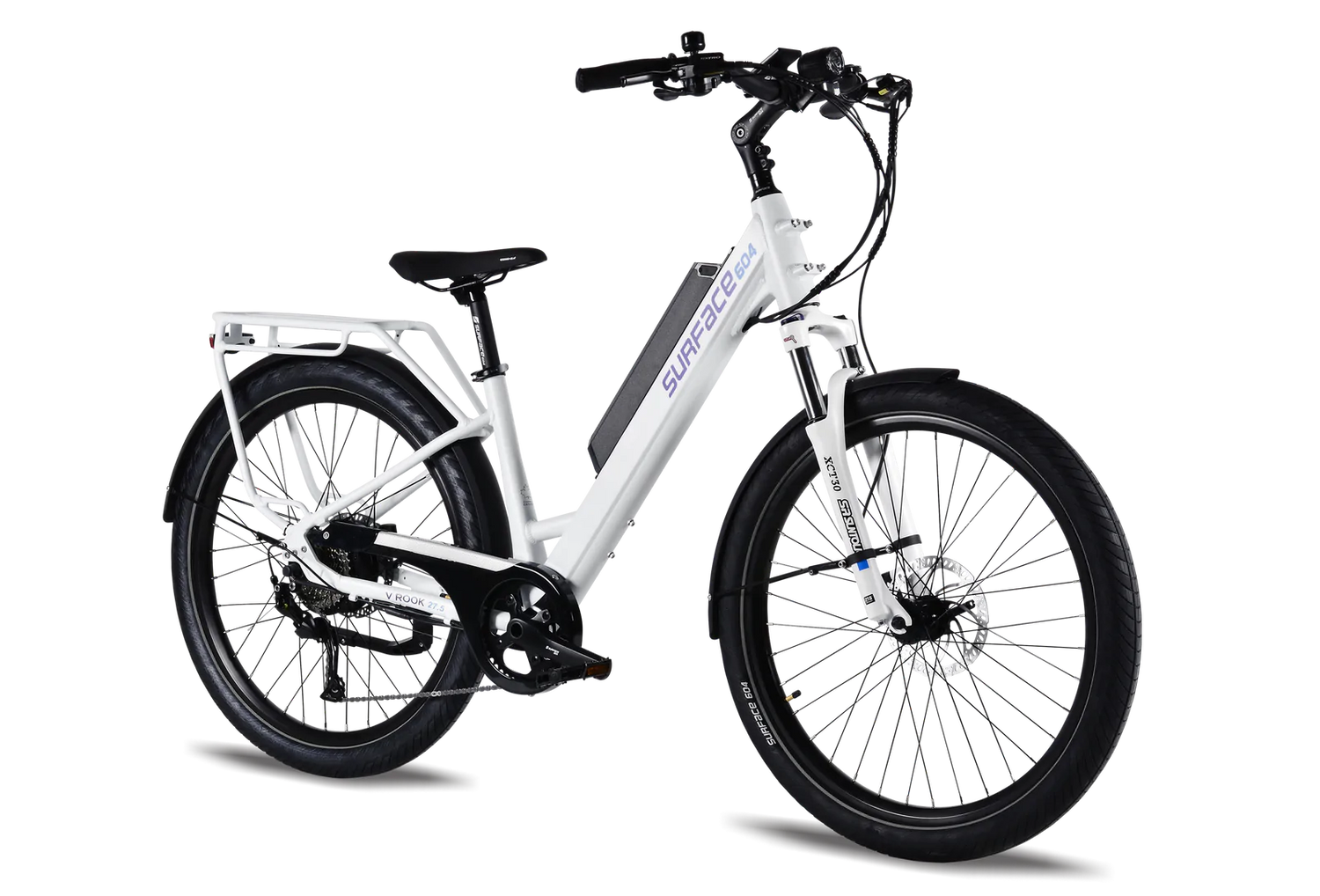

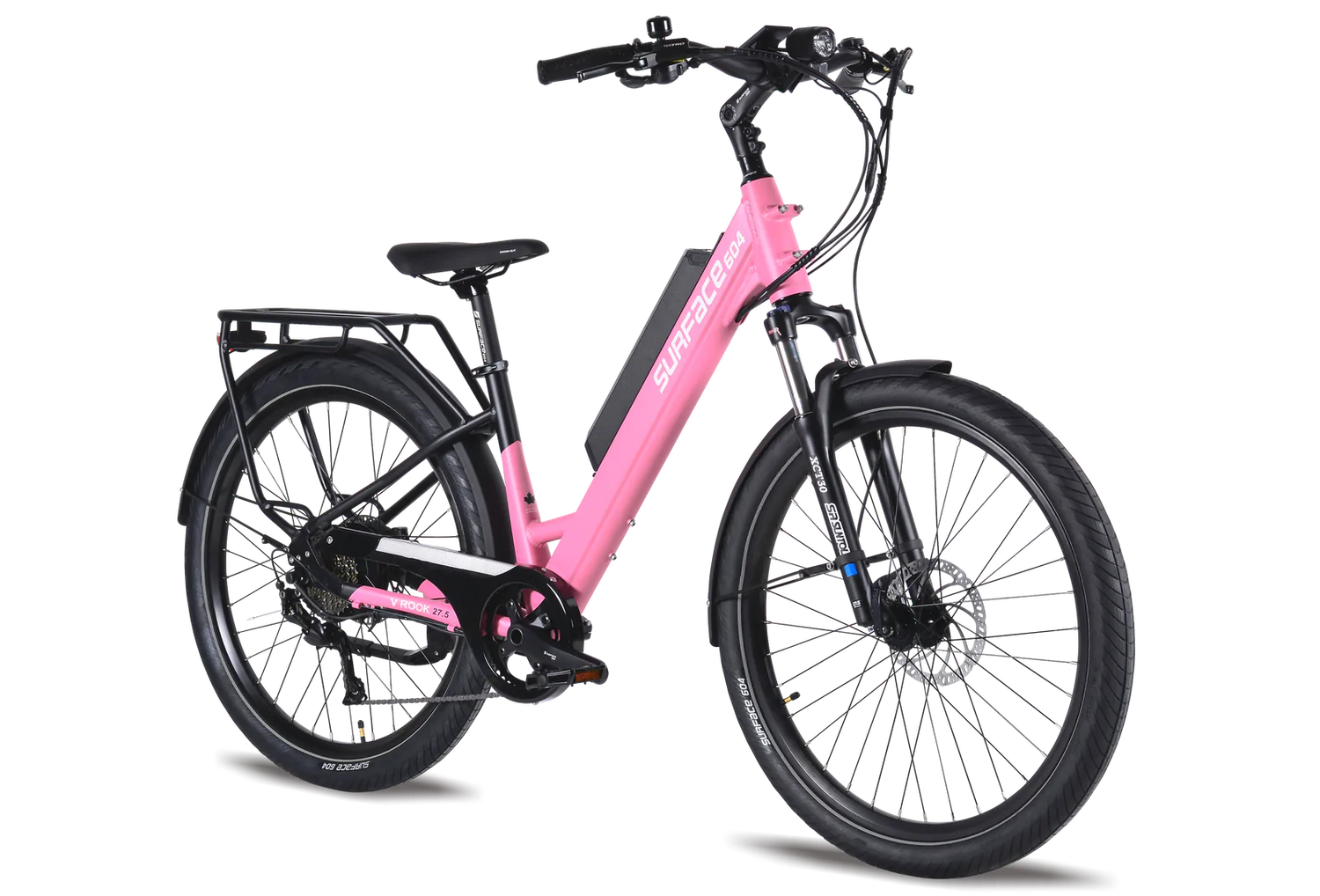

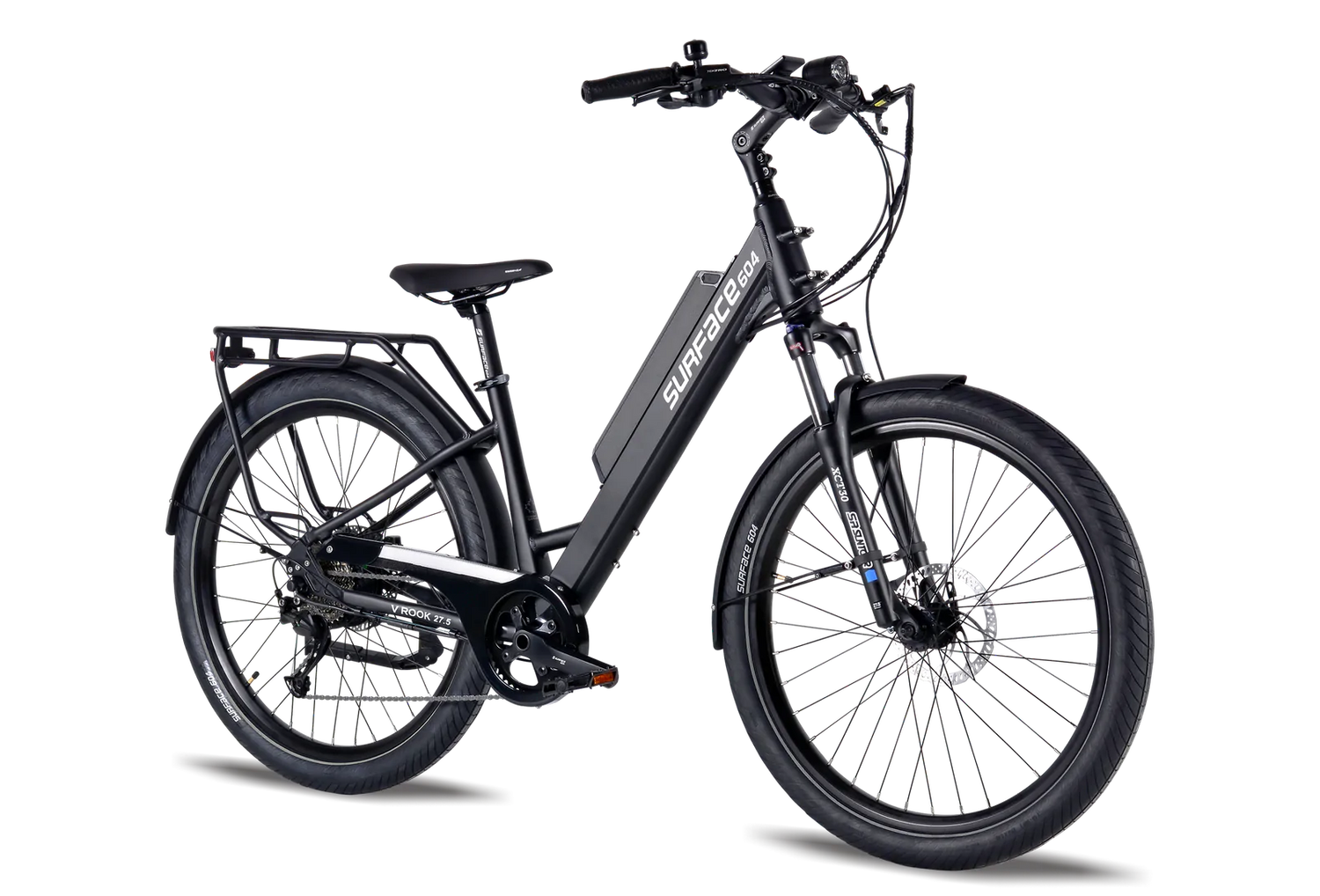

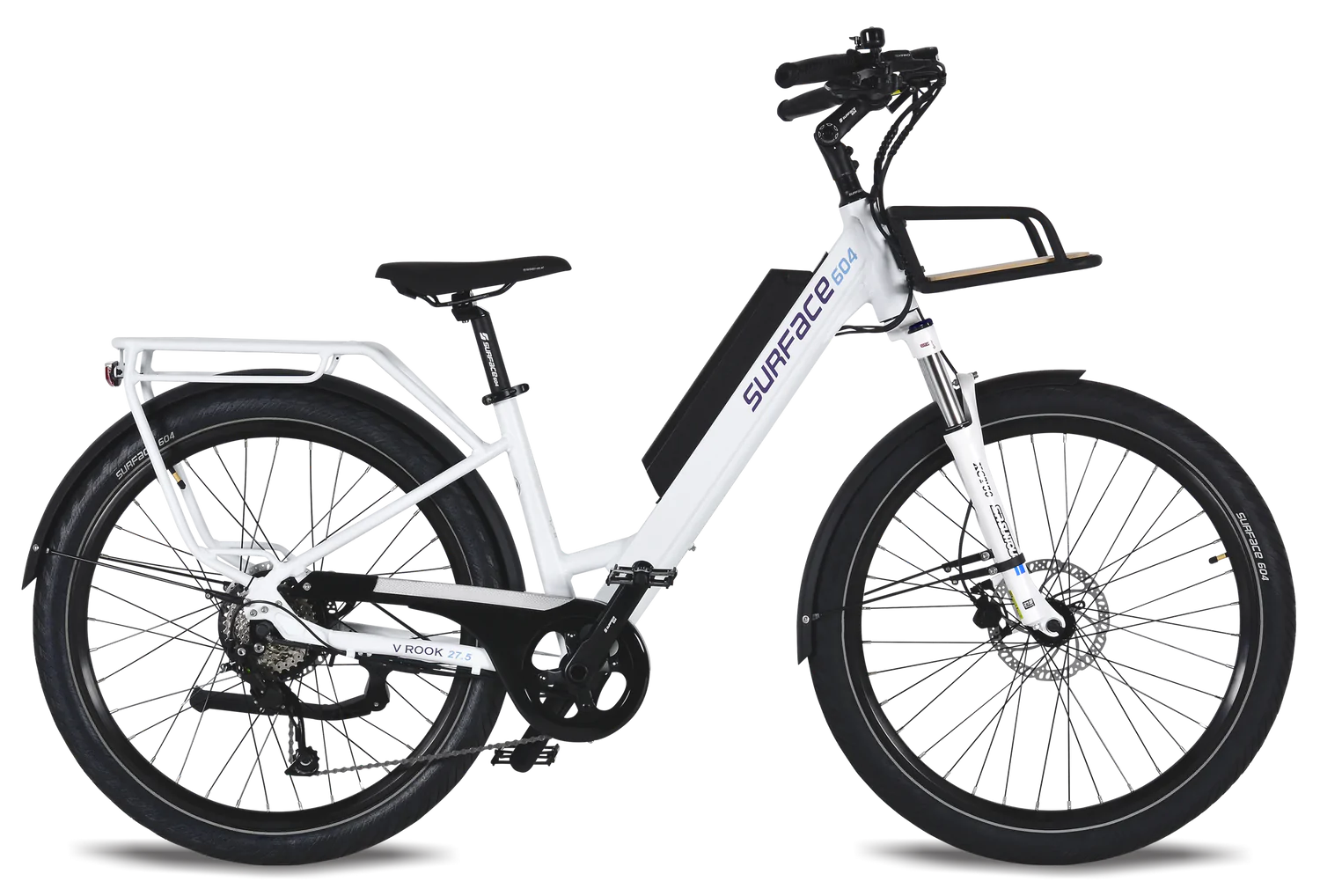

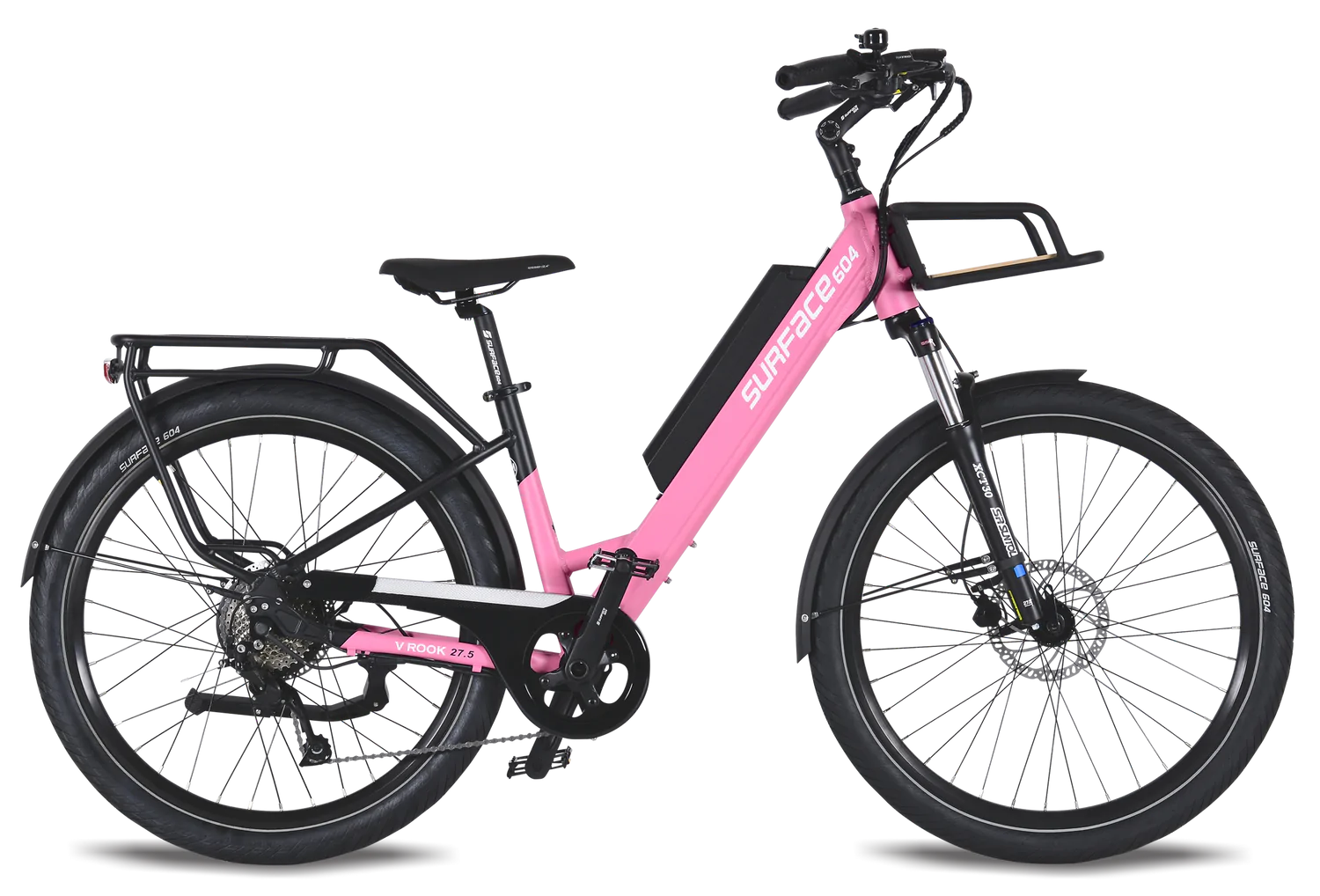

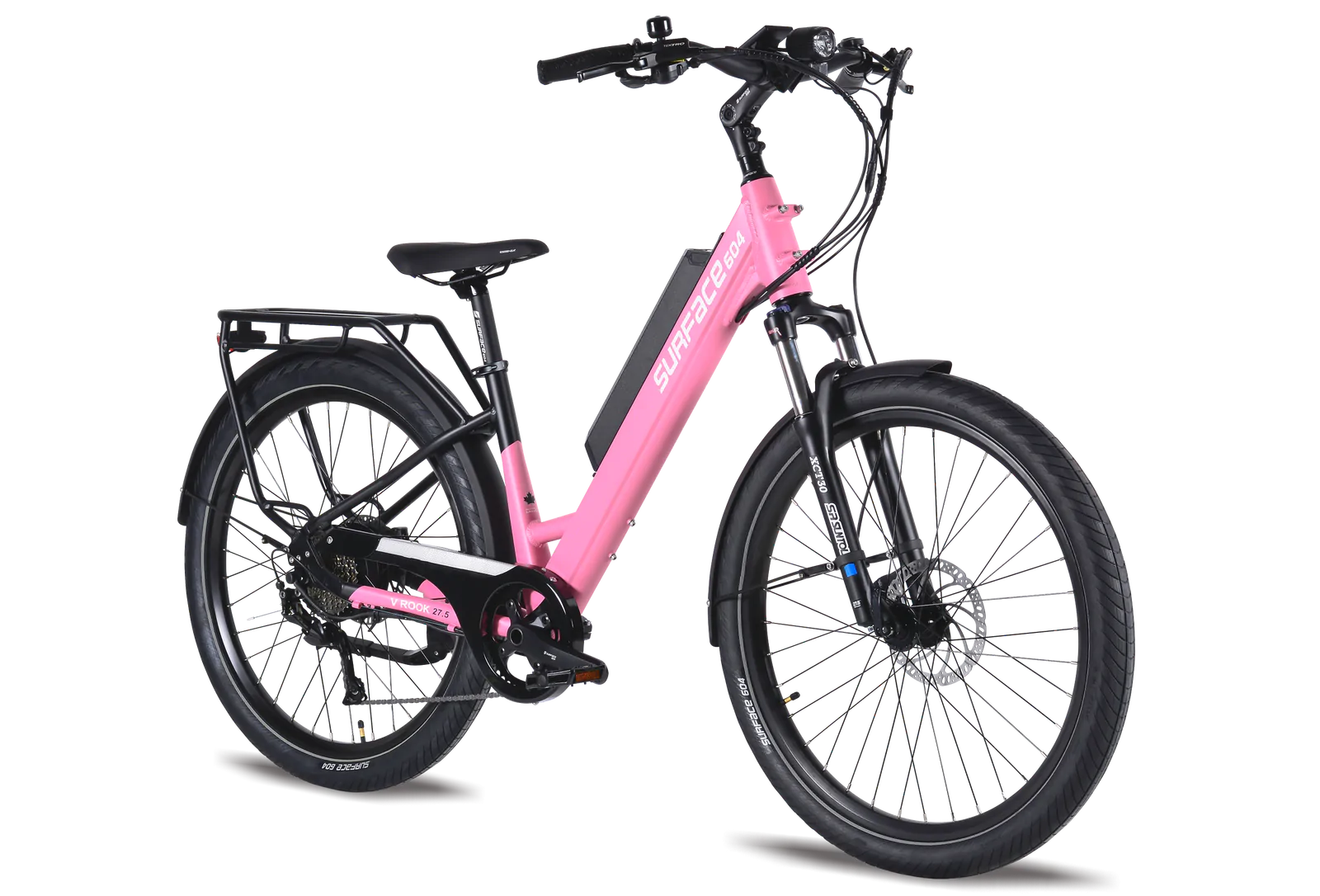

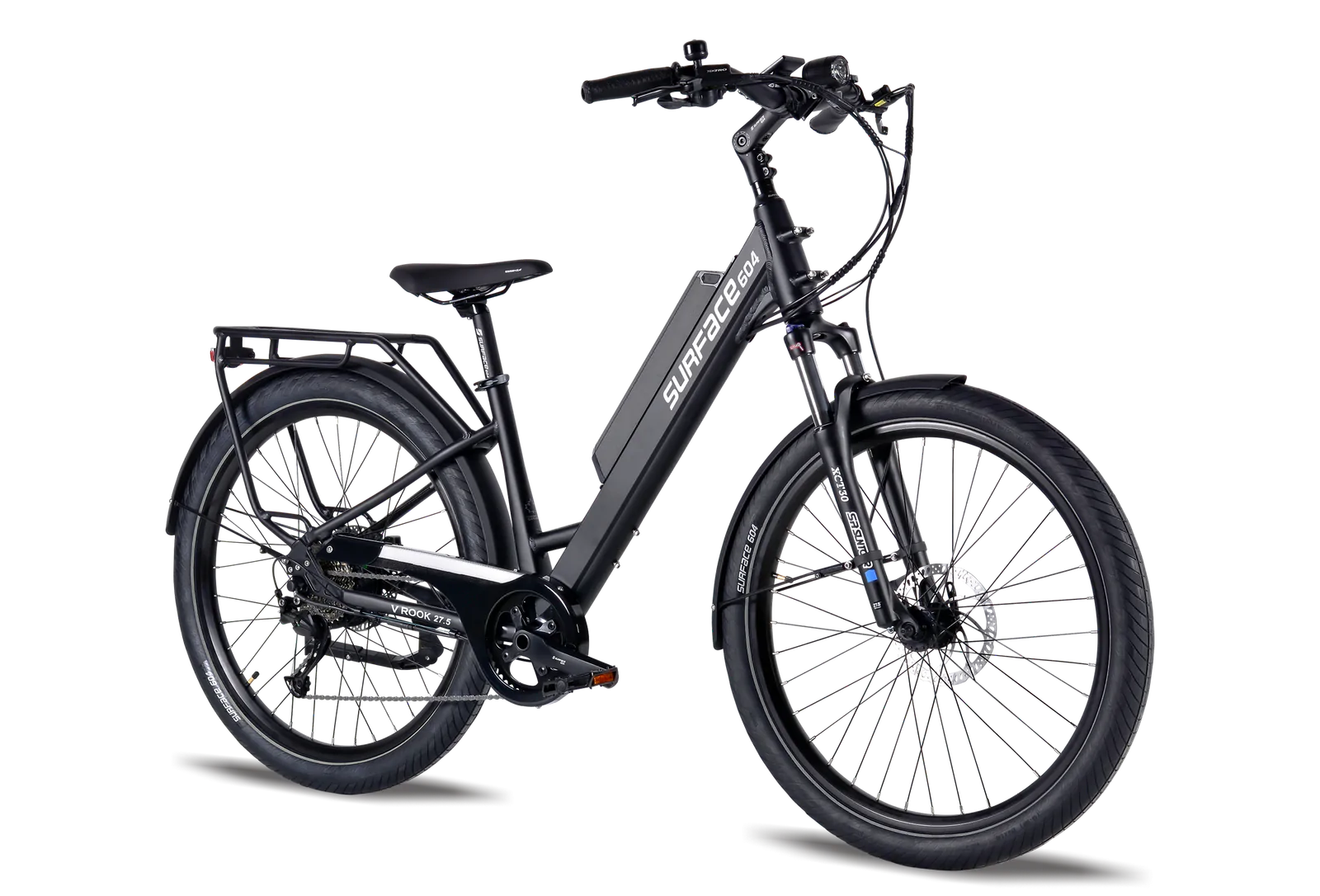

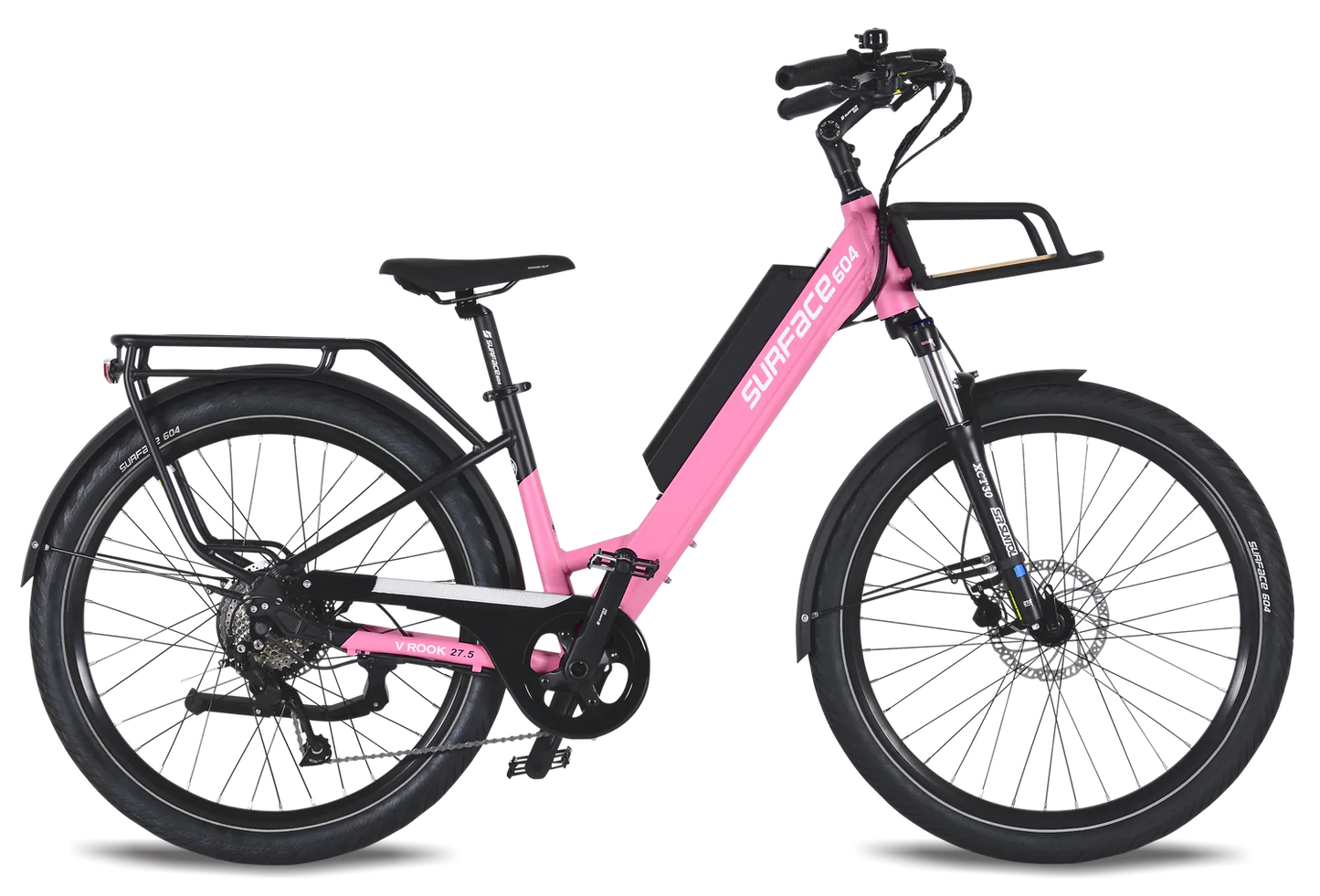

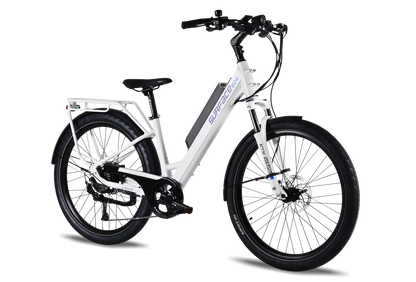

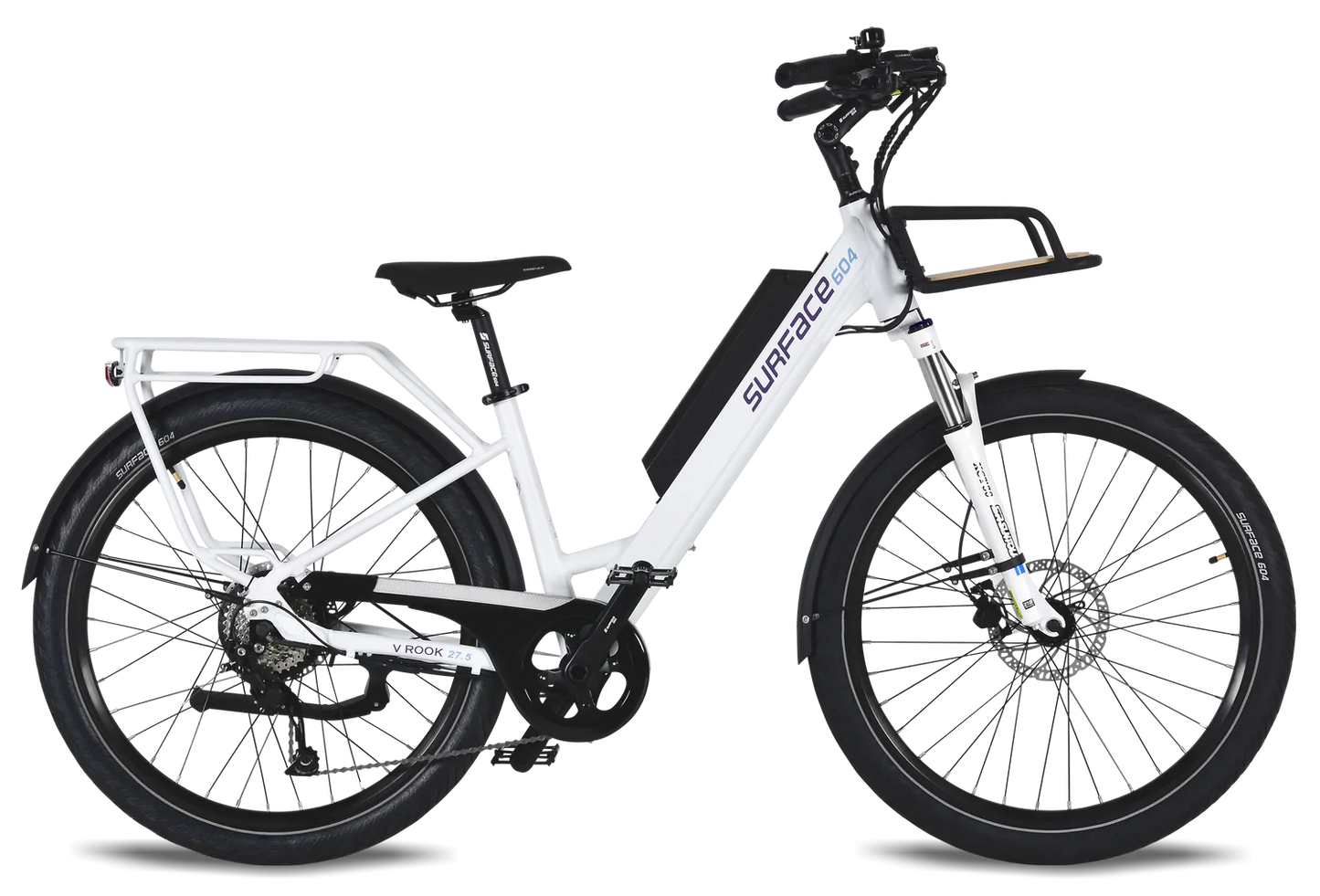

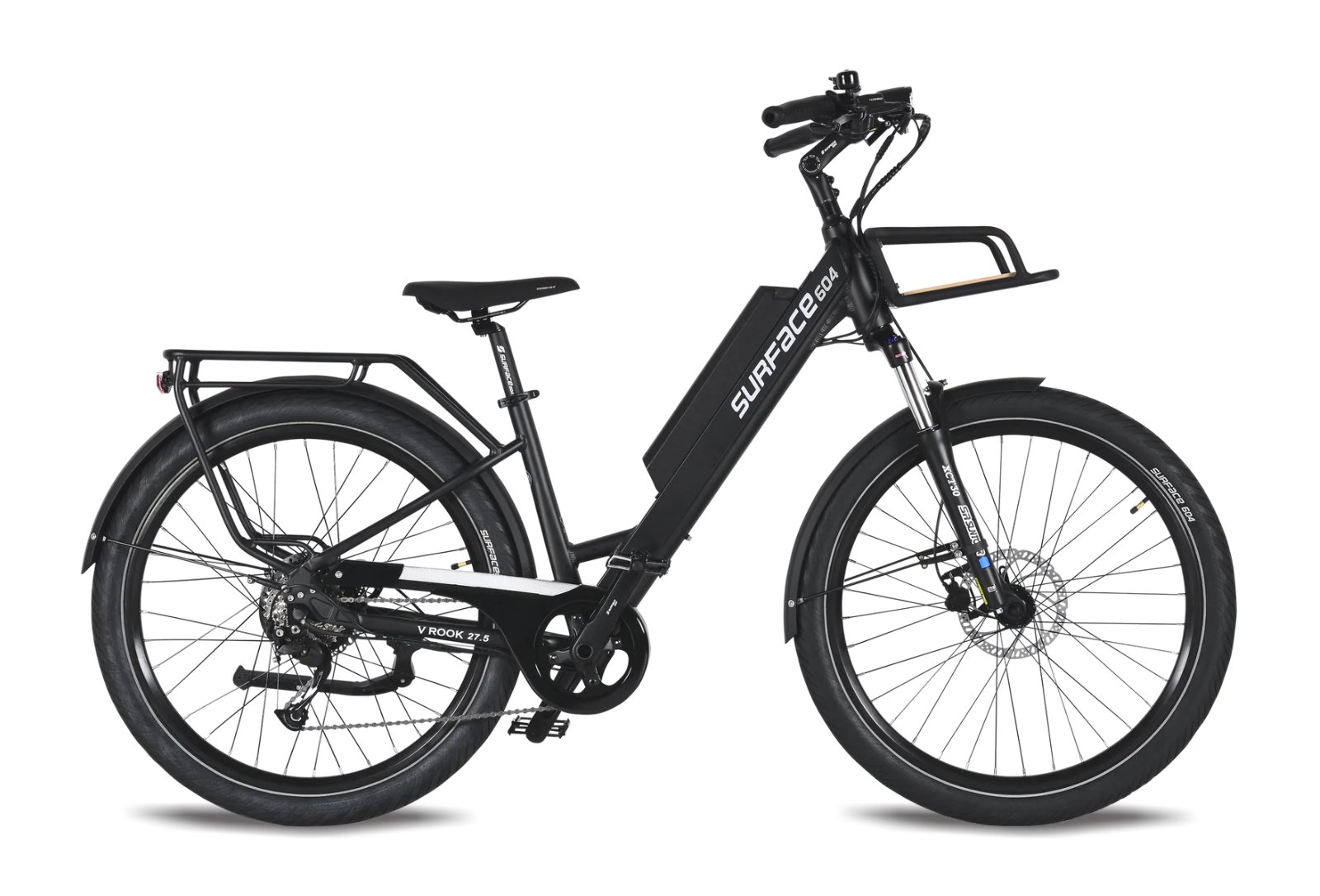

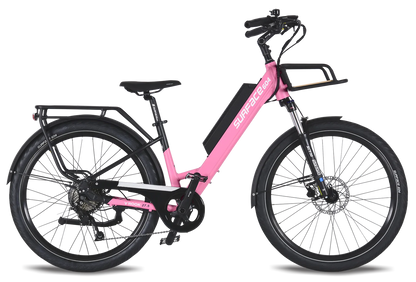

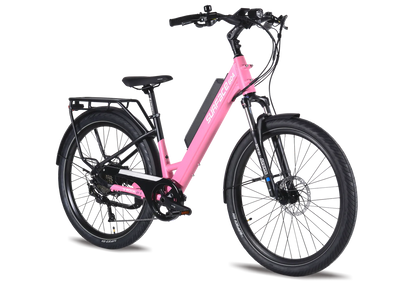

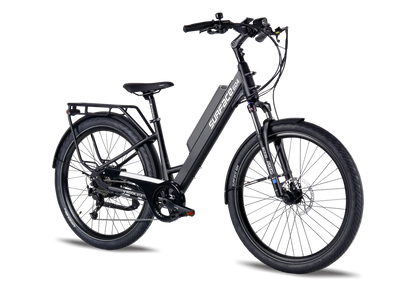

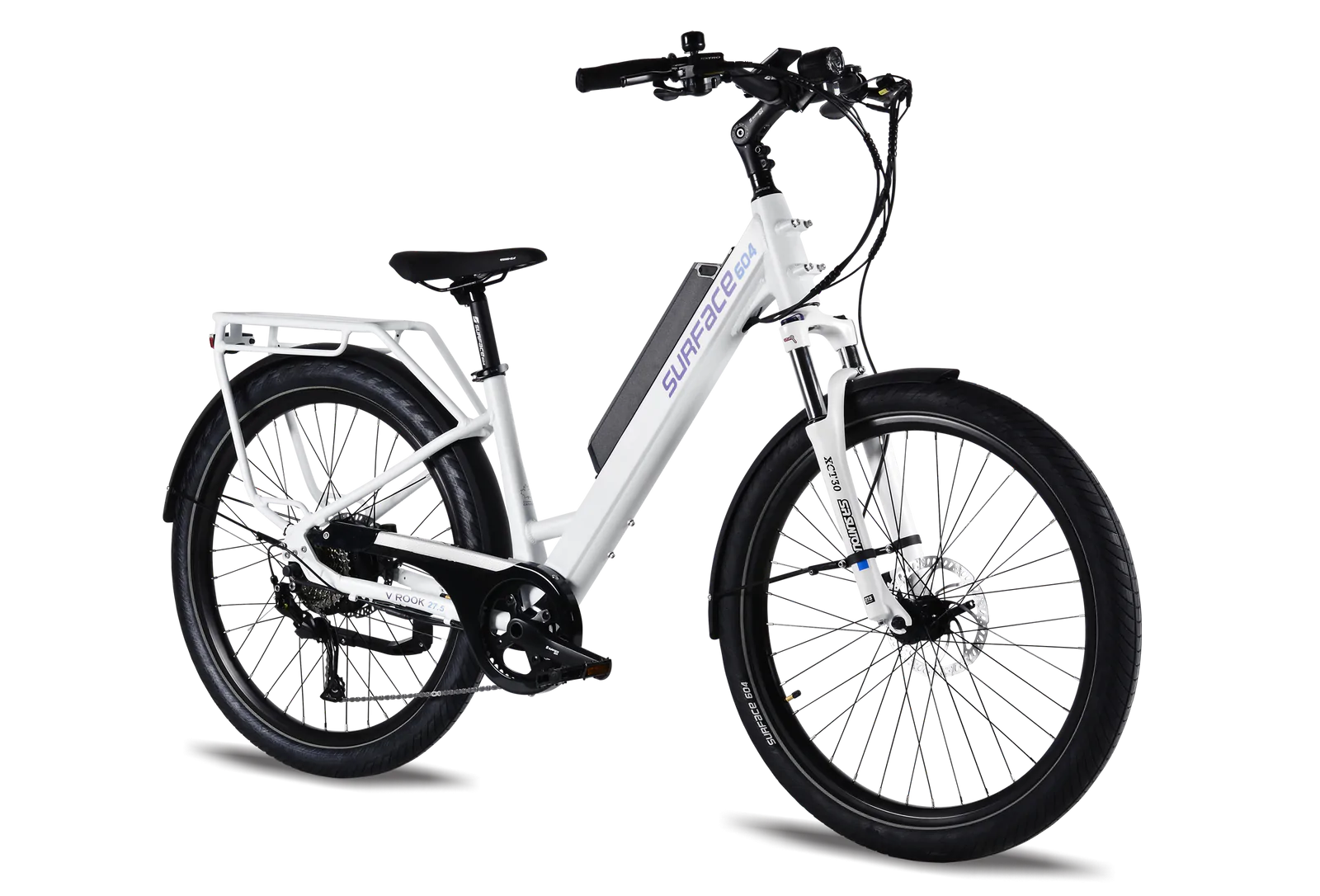

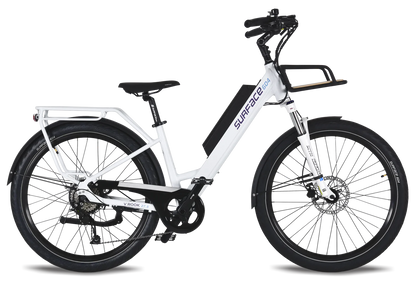

Surface 604 - V Rook

Regular price $2,599.00 USD*
Regular price $2,599.00 USD* Sale price $2,599.00 USD*
Sale Sold out
Color

MOTOR

500W (Peaks At 750W) Bafang Geared Hub Brushless Motor

DRIVE MODE

Drop Out Torque Sensing Pedal Assist with a Throttle

TORQUE

65Nm of Torque

THROTTLE

Thumb Push Activated Throttle

CONTROLLER

SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller

TOP SPEED

20mph (32kmh)*, Comes as Class 2
(Unlocked) 30mph (48kmh), as Class 3

BATTERY

Included: 48V 14Ah / 672Wh
Samsung lithium-ion 18650 cells
Upgrade option: 48V 20Ah / 960Wh
Samsung lithium-ion 21700 cells

BATTERY RANGE

Up to 45mi (72km) with a 48V14Ah Battery
Up to 65mi (105km) with a 48V20Ah Battery

BATTERY CHARGE TIME

3-4 Hours for a Full Charge from Empty

DISPLAY TYPE

SURFACE604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2022

LIGHTS

BÜCHEL SHINY 120 front headlight / rear light (optional)

FORK

SR SUNTOUR XCM 27.5, 80mm with Axle Thru Hub

MOTOR WIRE HARNESS

30Ah, can handle up to 120C current (upgraded)

DERAILLEUR

SHIMANO ALIVIO 9-Speed

CASSETTE

SHIMANO 11-36T Cassette

SHIFT LEVERS

SHIMANO ALIVIO 9-Speed

BRAKES

TEKTRO Auriga Hydraulic Disc Brakes
Post Mount, with Motor Inhibitors

CRANK SET

SAMOX 42T Front Sprocket

ROTORS

180mm Front/Rear x 2.34mm Thick

BOTTOM BRACKET

SAMOX Sealed Bottom Bracket

FRAME TYPE

Tapered Headtube, Custom Reinforced Battery Mounts
Internal Cable Routing, Post Mount Brakes

FRAME MATERIAL

6061 Aluminum Alloy

STEM

SATORI Up2+, Adjustable

HANDLEBAR

PROMAX Aluminum, 30mm Rise With 45° Backsweep, 710mm Wide

PEDALS

WELLGO Platform, with Die Casting Body

CHAIN

KMC 9-Speed

SEAT POST DIAMETER

30.4mm

SADDLE

Selle Royal Gel Saddle "Essenze Plus"
with elastometer (Relaxed)
suitable for City/Tour use

WHEELS/TIRE

27.5" X 2.4" Custom S604 Panaracer Tires With Puncture Protections
3mm “Green Shield” technology, 40% more puncture proof then regular tire

RIMS

Aluminum Alloy Double Wall Rim, 27.5”x13Gx36H

FRONT HUBS

Surface604 Aluminum

STANDOVER HEIGHT

Small-Medium: 28.5” (724mm)"
Medium-Large: 30” (762mm)

RECOMMENDED RIDER HEIGHT

NET WEIGHT (INCLUDING BATTERY)

26.6KG/58lbs (14AH)
27.75KG/61lbs (20AH)

BATTERY WEIGHT

14AH battery 3.45KG/7.5lbs
20AH battery 4.65KG/10lbs

WEIGHT CAPACITY

285lbs (130kg)
