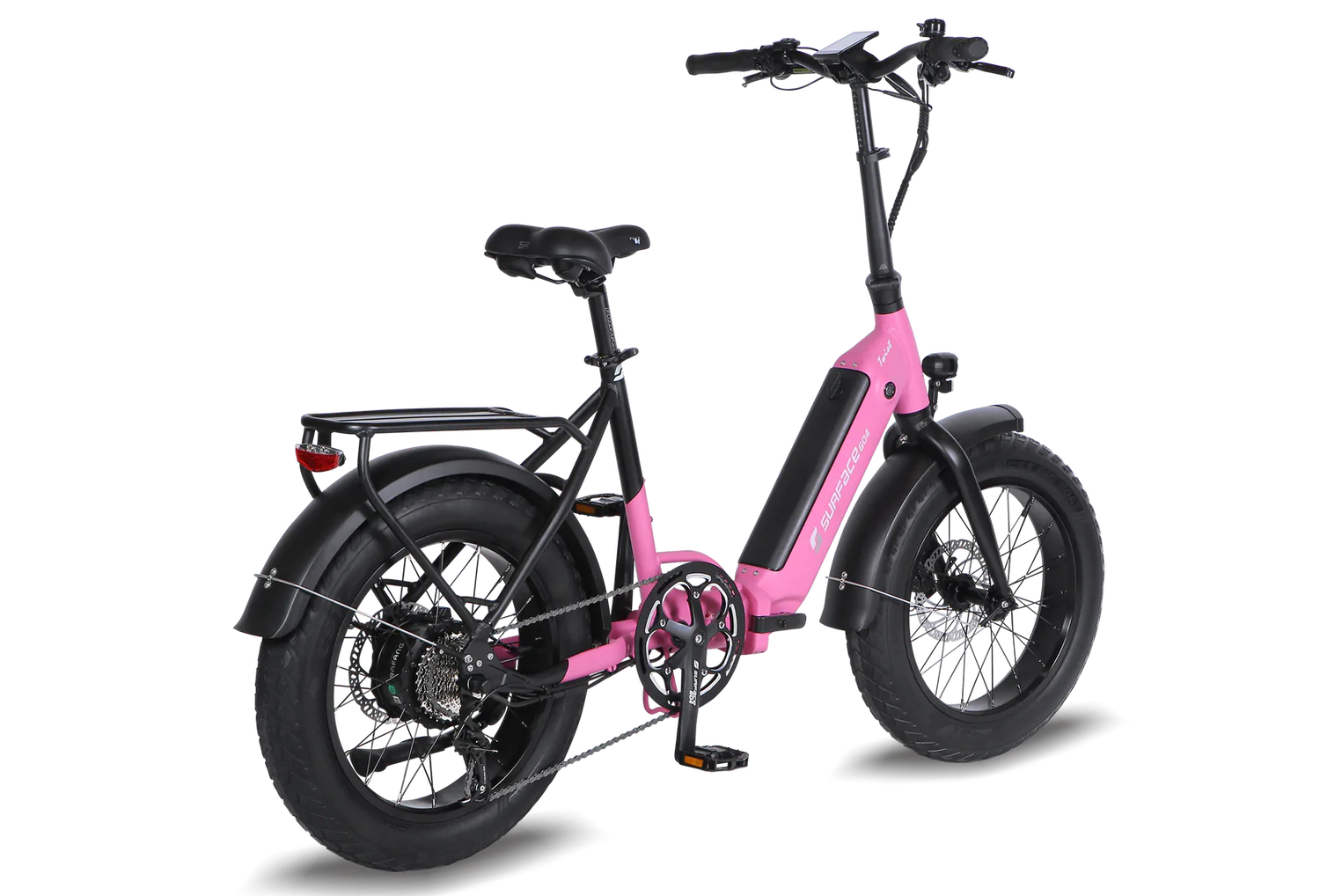

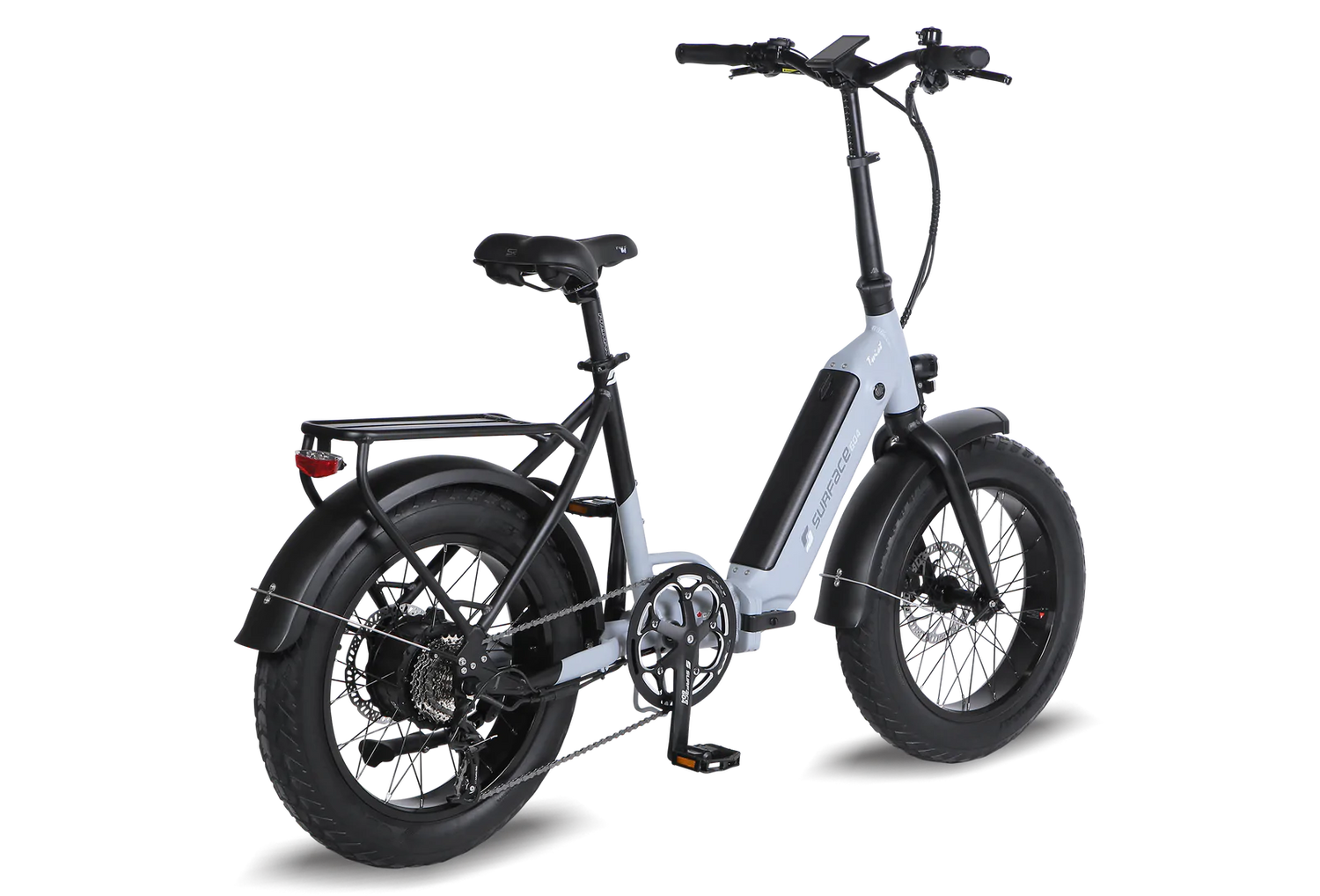

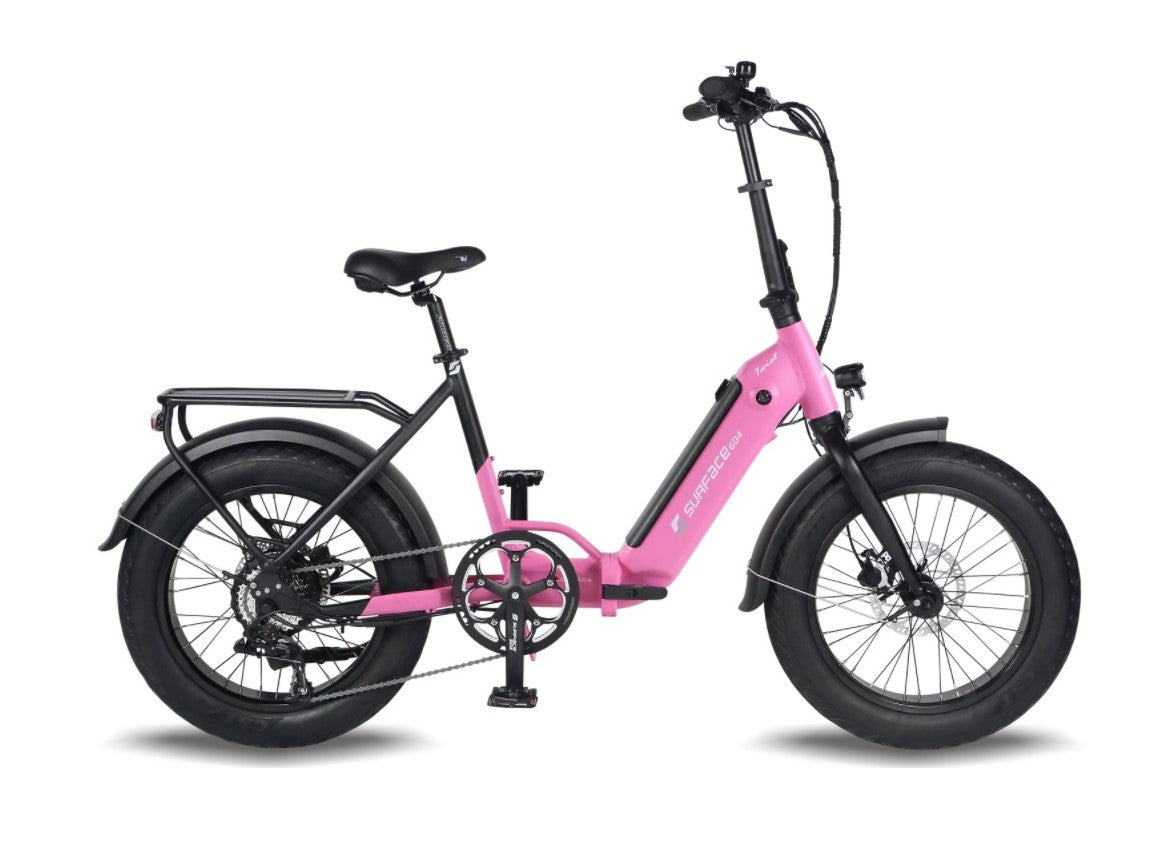

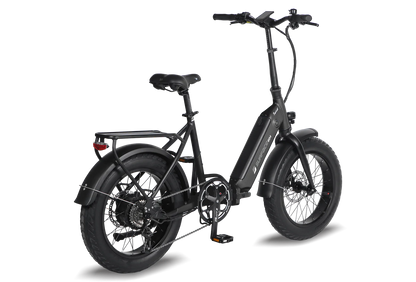

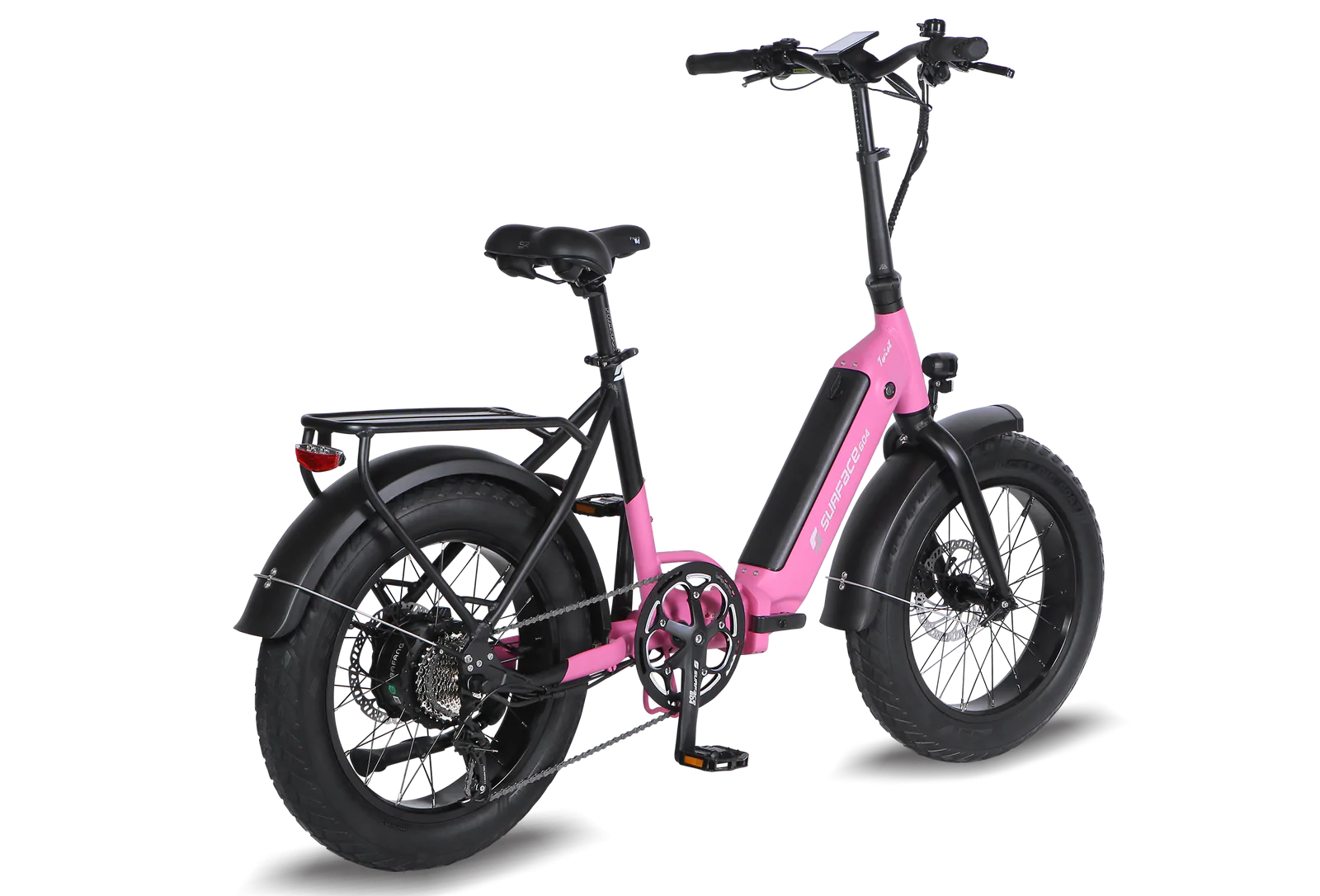

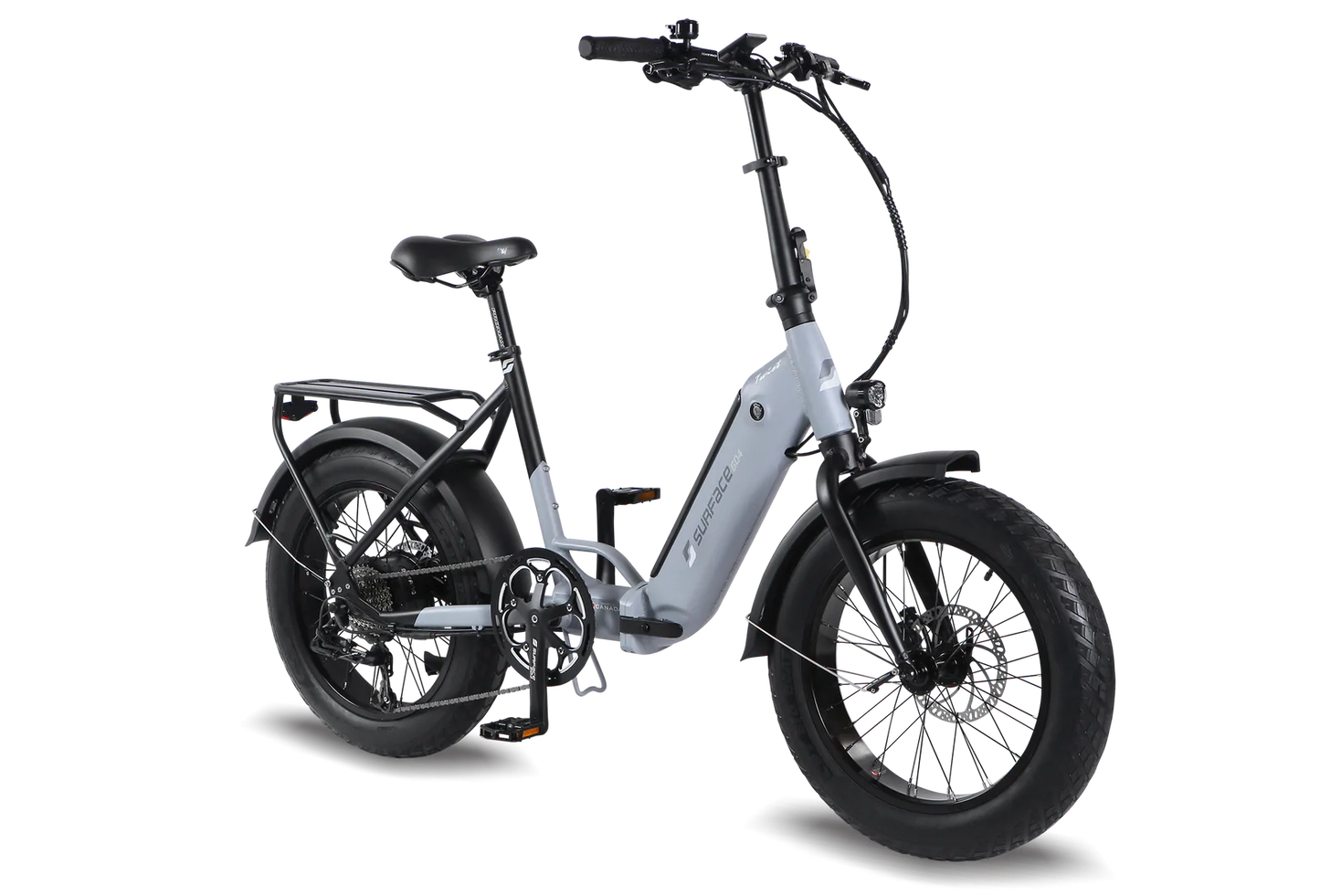

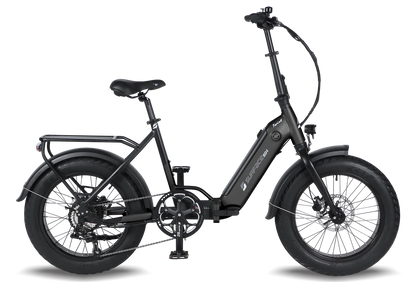

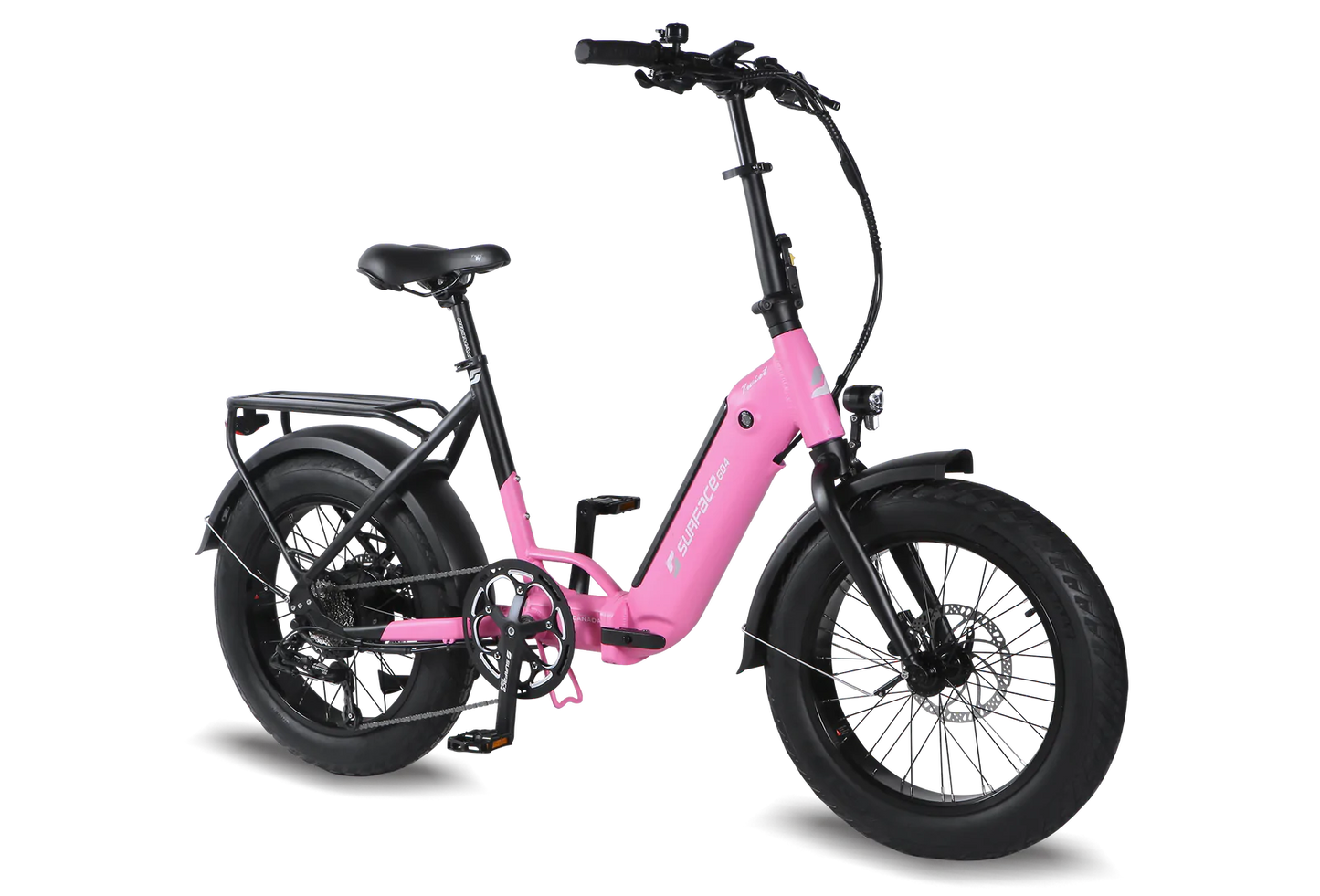

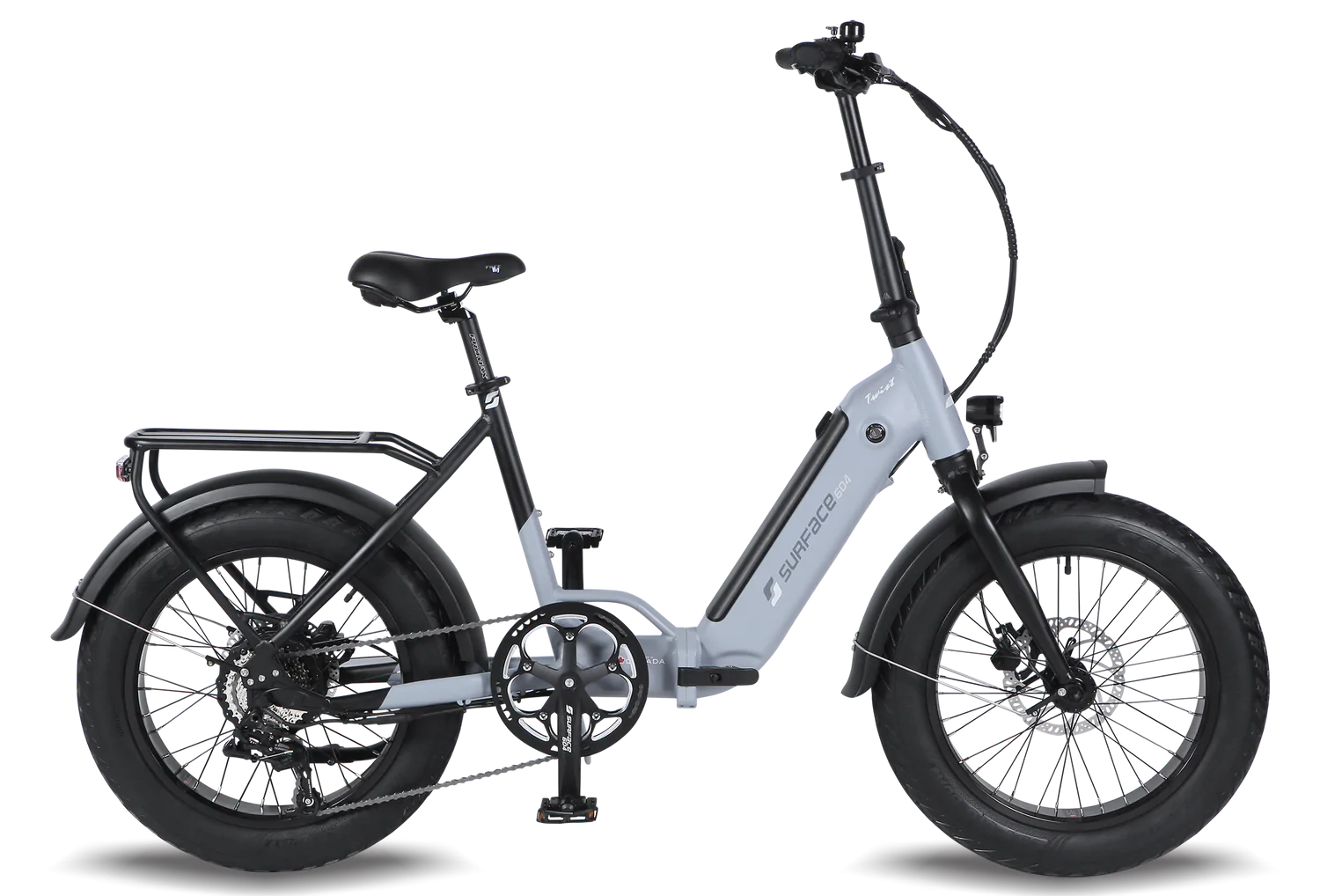

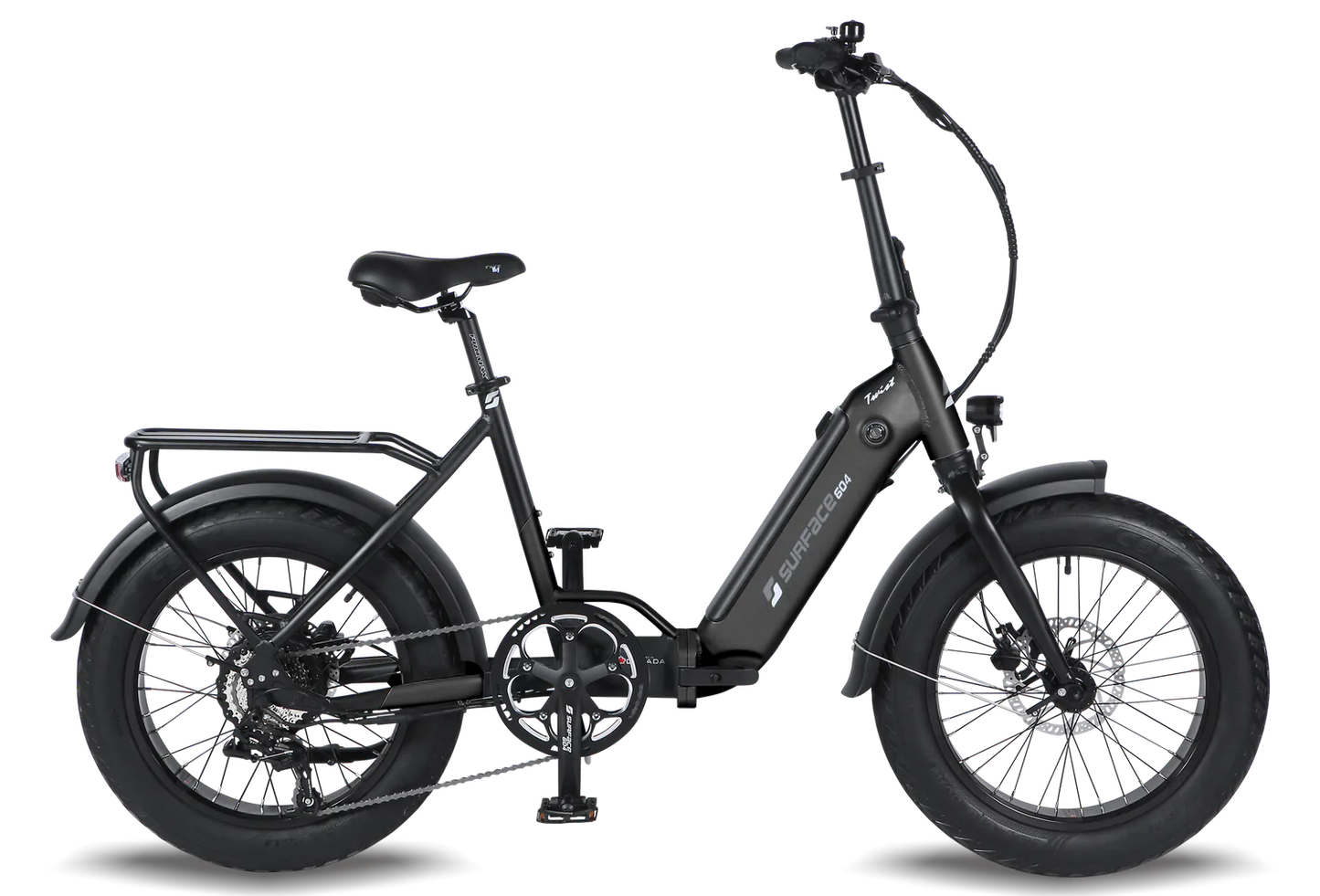

Surface 604

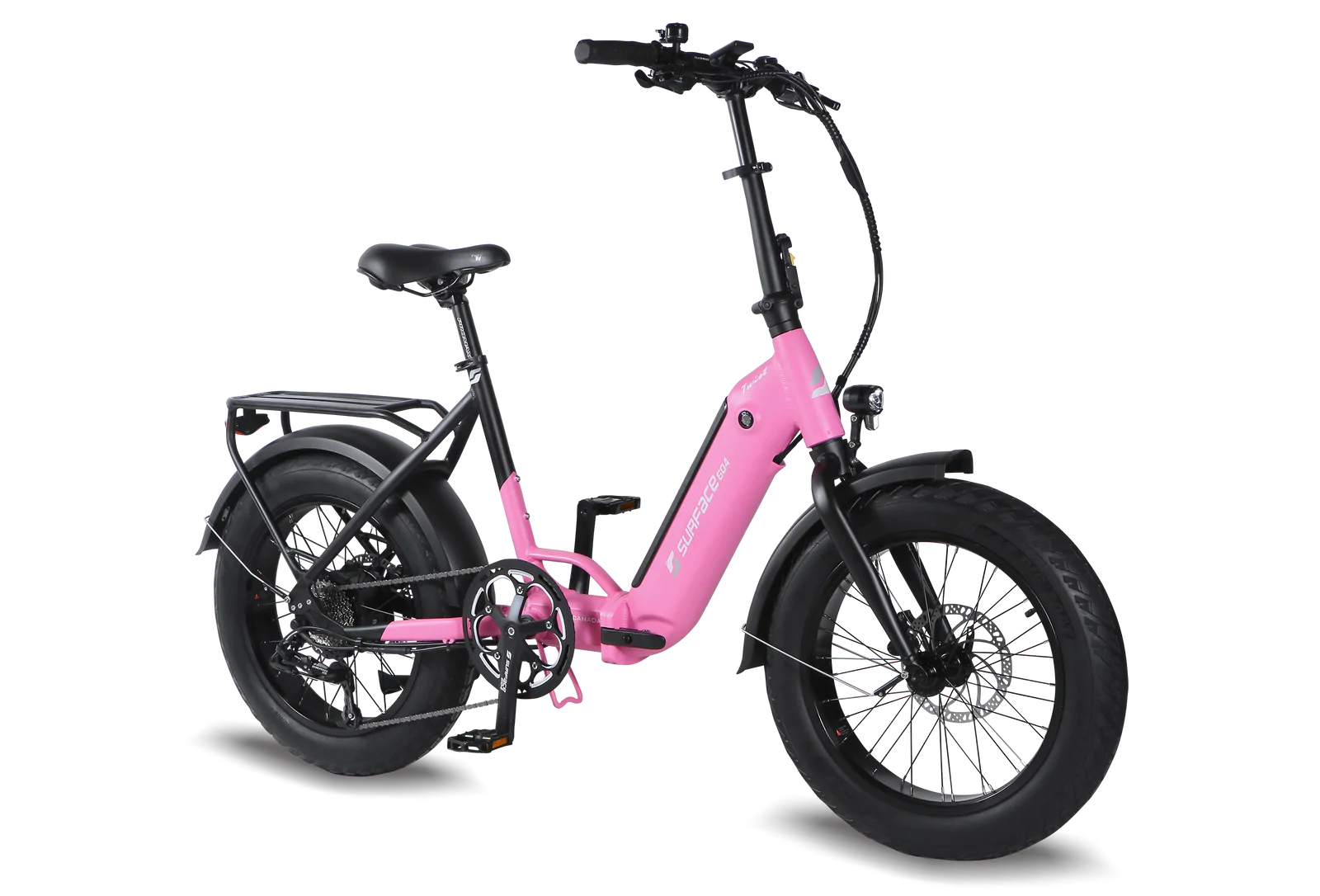

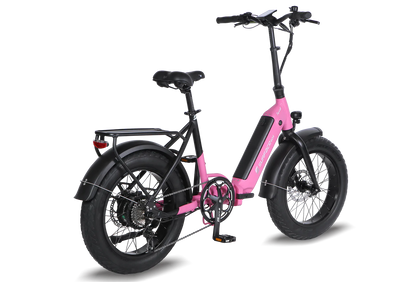

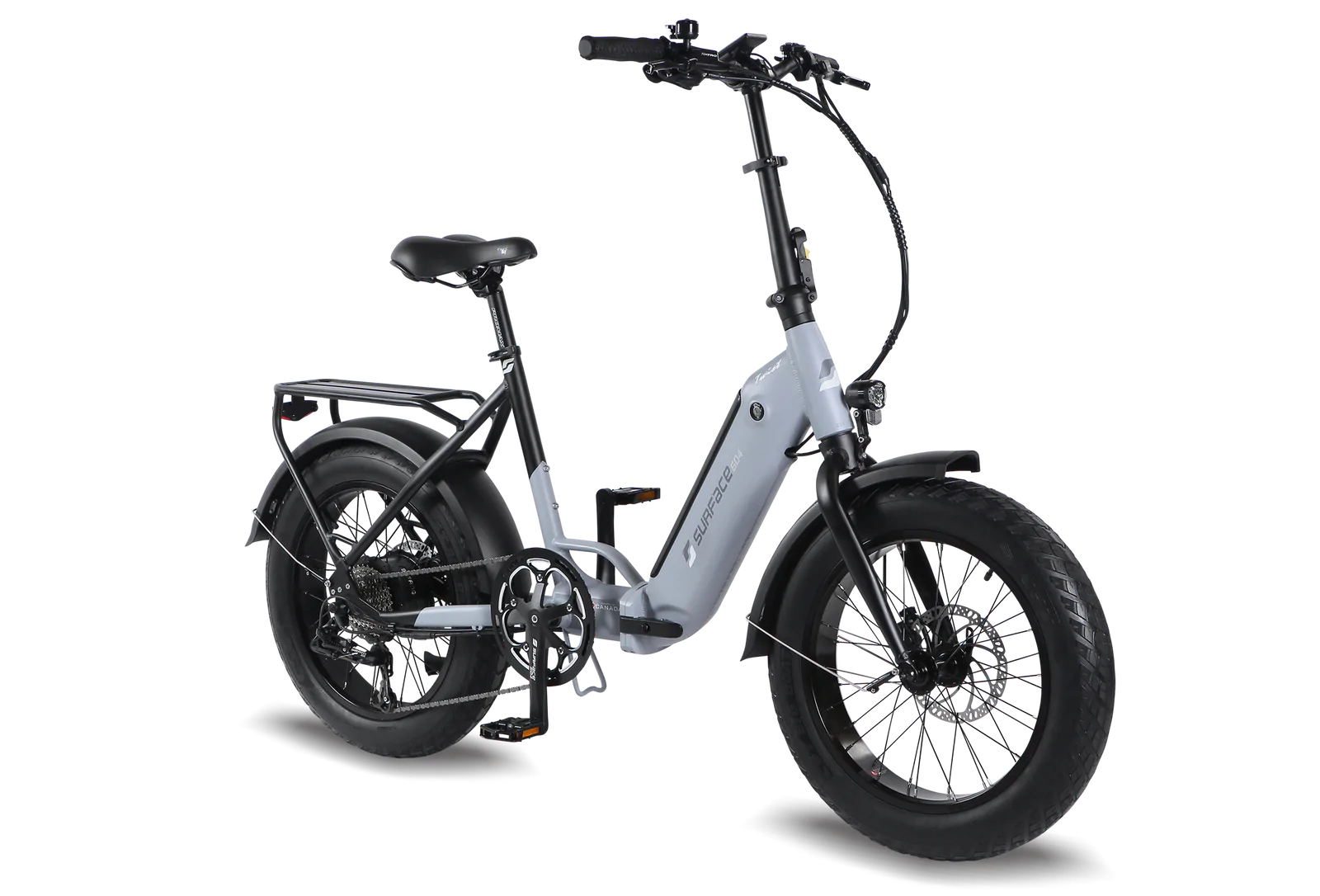

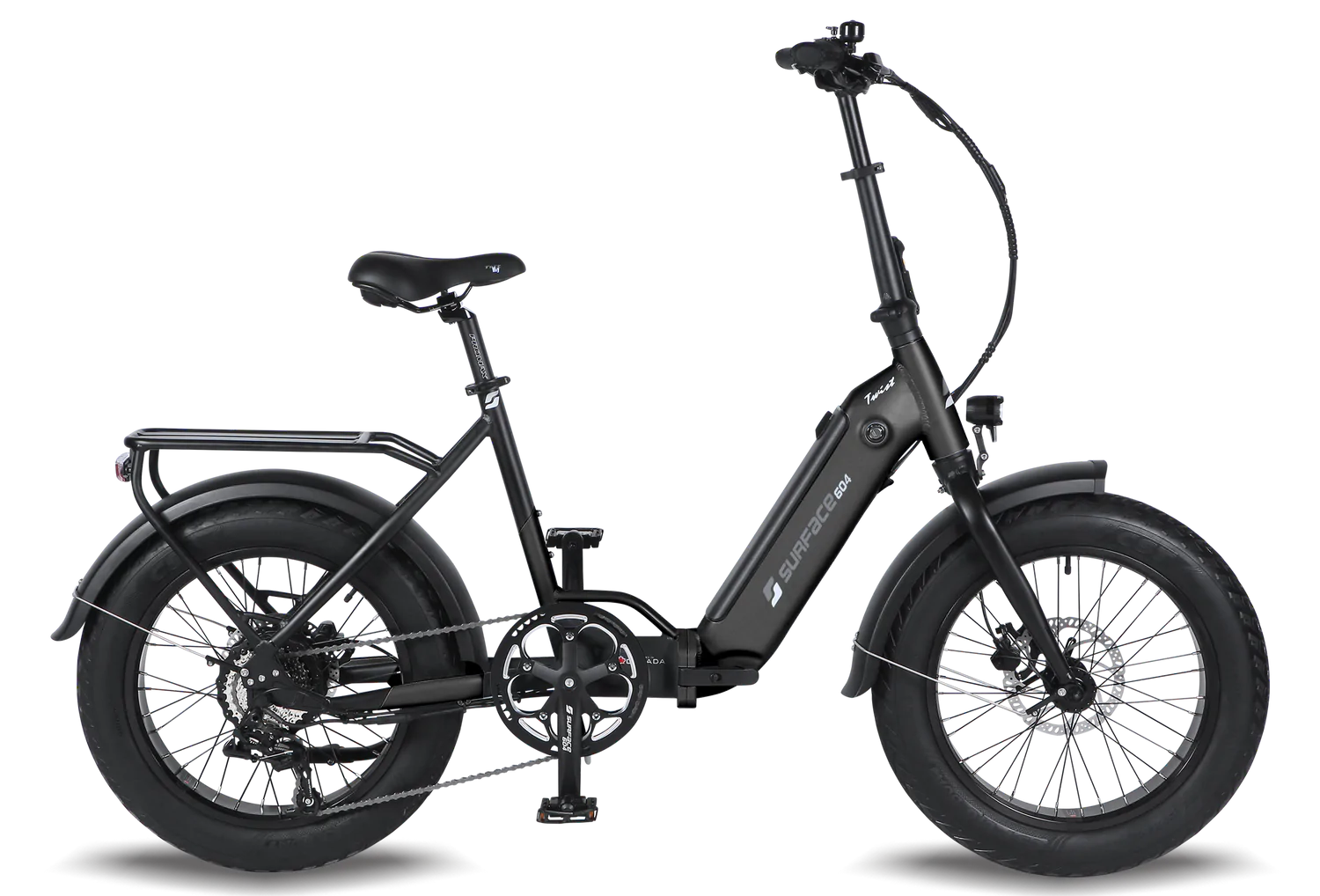

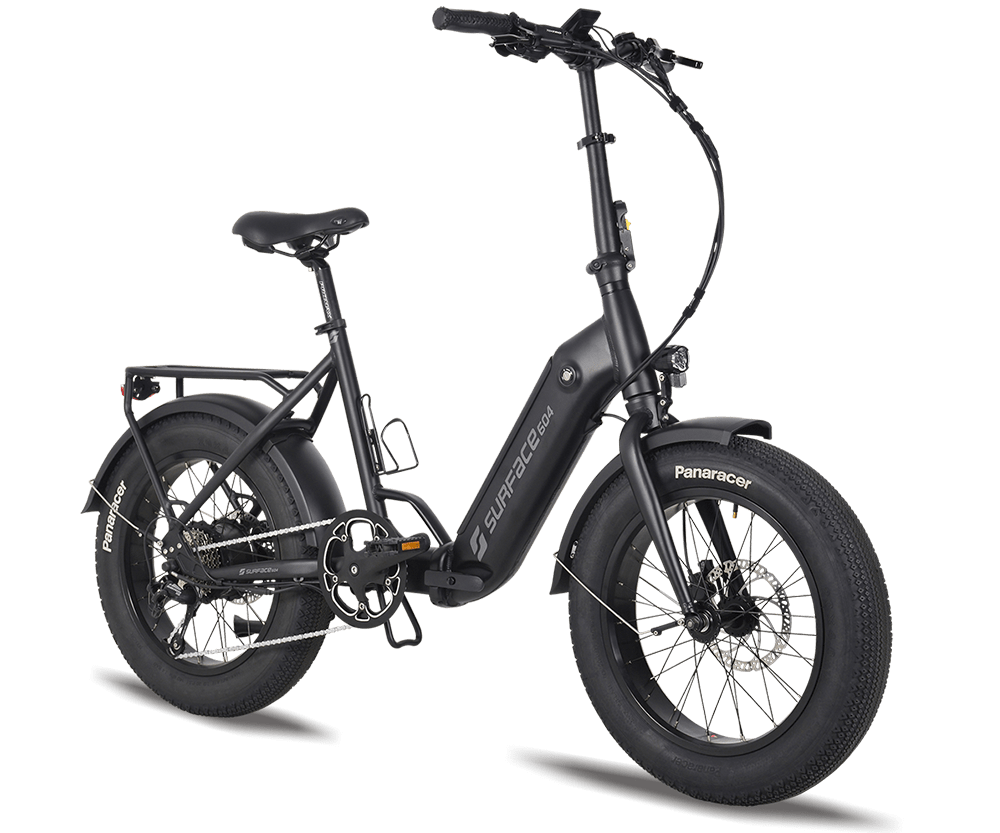

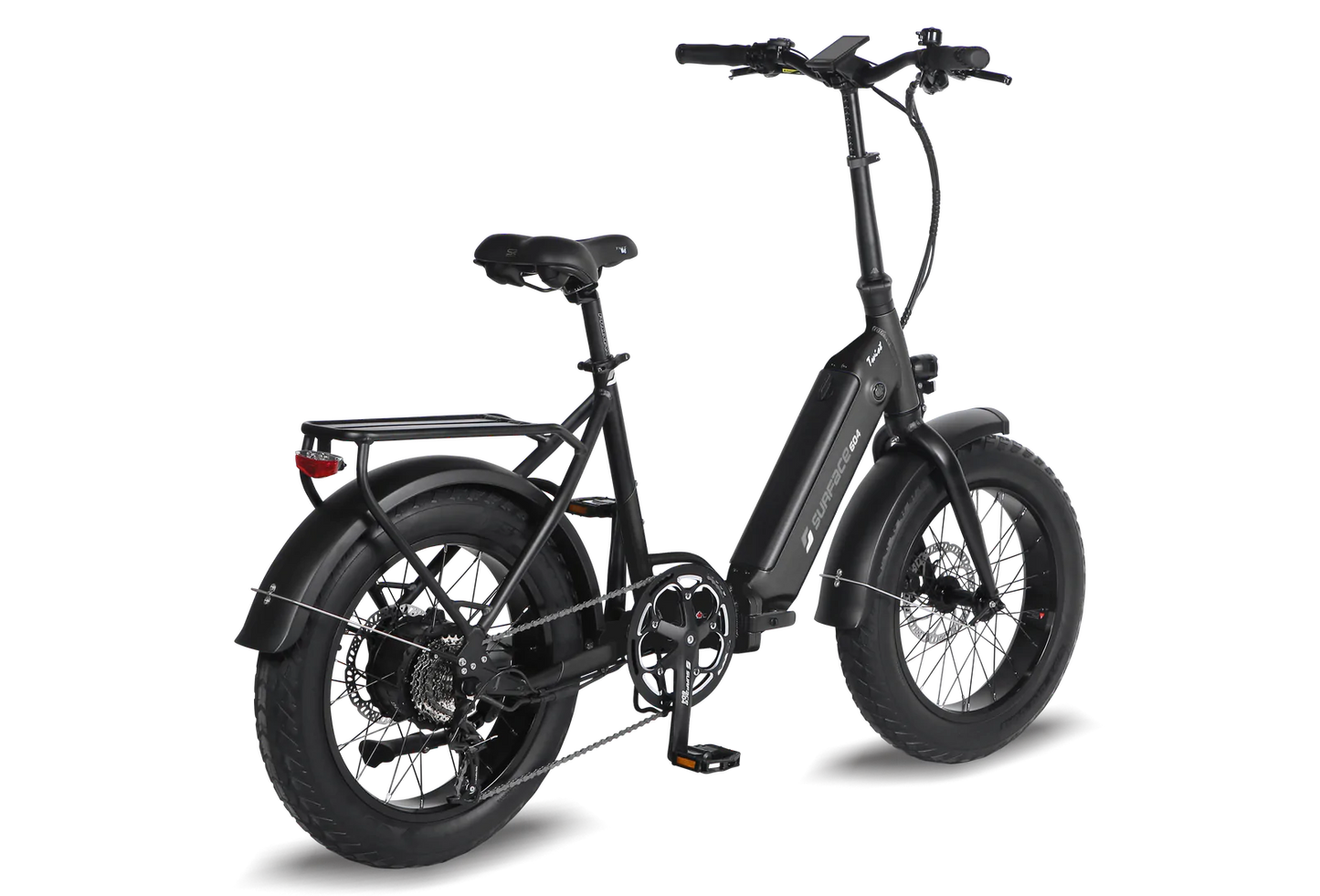

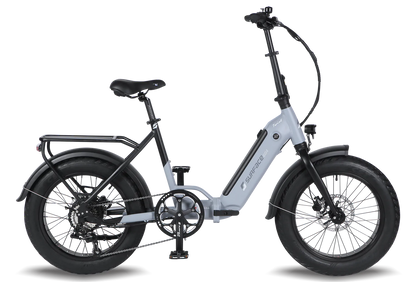

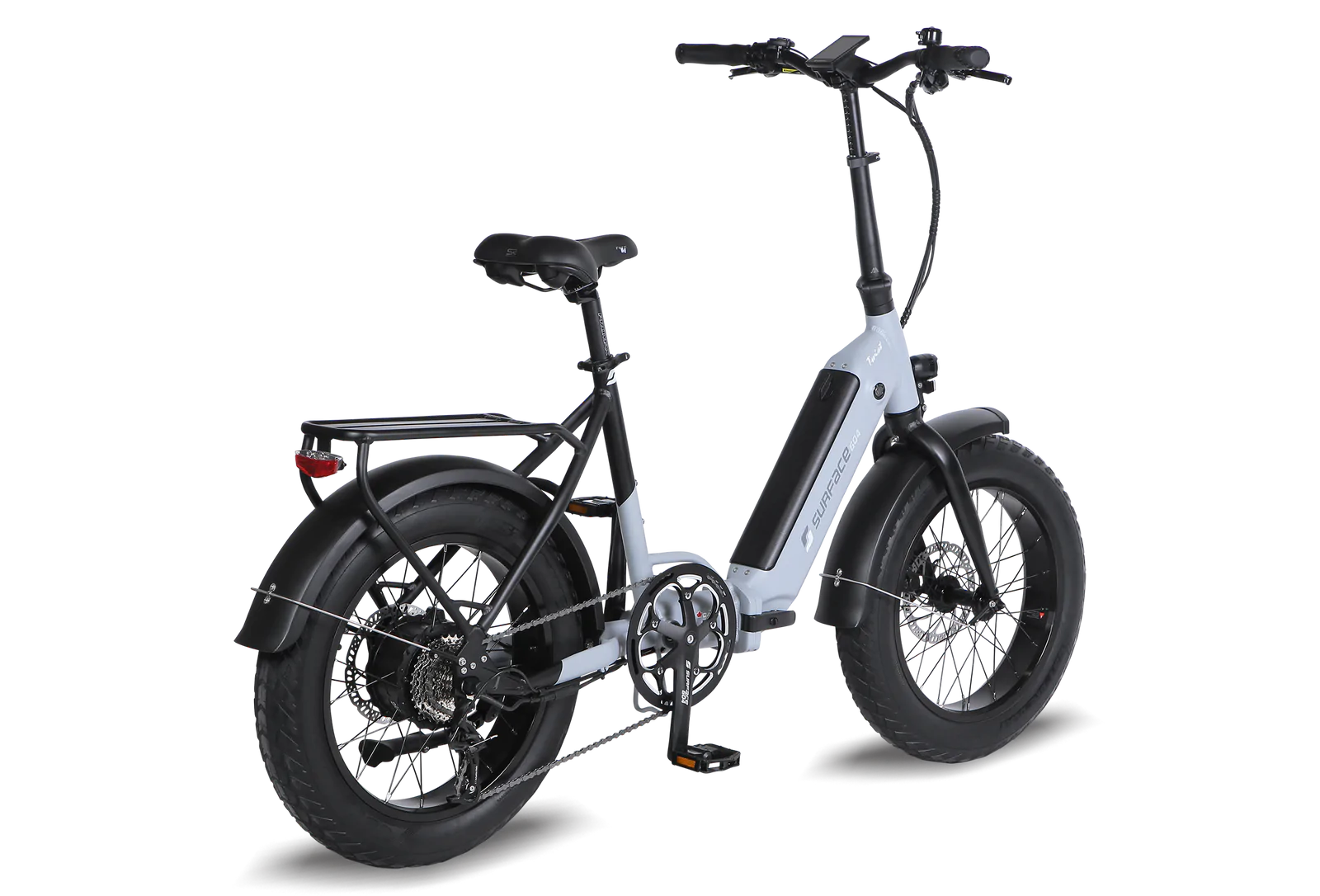

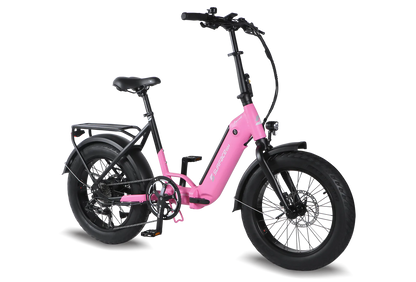

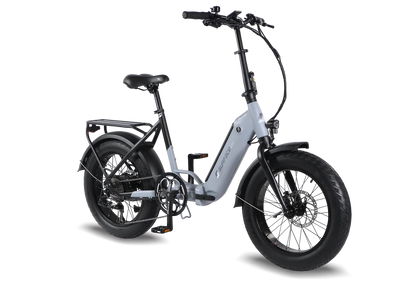

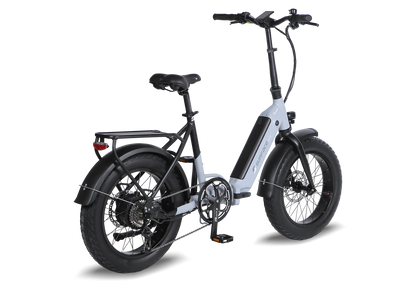

Surface 604 - TWIST
Couldn't load pickup availability
MOTOR
500W (Peaks at 750W) Bafang Geared Rear Hub Brushless Motor
DRIVE MODE
Drop Out Torque Sensing Pedal Assist with a Throttle
TORQUE
80Nm of Torque
THROTTLE
Thumb Push Activated Throttle
CONTROLLER
SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
TOP SPEED
20mph (32kmh)*, Comes as Class 2
(Unlocked) 25mph (40kmh), as Class
BATTERY
Included: 48V 14Ah / 672Wh
Samsung Lithium-Ion 18650 Cells - Integrated
BATTERY RANGE
Up to 45mi (72km) with a 48V14Ah Battery
BATTERY CHARGE TIME
3-4 Hours for a Full Charge from Empty
DISPLAY TYPE
SURFACE604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2022
LIGHTS
Büchel Headlight, Pre-Wired To Connect Rear Stop Light
FORK
Rigid Cruiser Front Fork
MOTOR WIRE HARNESS
30Ah, can handle up to 120C current
DERAILLEUR
Short Cage SRAM X5 Groupset - 9 Speed
CASSETTE
X5 12-36T
44T Chainring
SHIFT LEVERS
SRAM X5 Trigger Shift
BRAKES
TEKTRO Auriga Hydraulic Disc Brakes
Post Mount, with Motor Inhibitors
CRANK SET
SAMOX 38T Front Sprocket, 170mm Crank Arms
ROTORS
180mm Front/Rear x 2.34mm thick
FRAME TYPE
Folding, Low Step Thru Geometry,
Internal Cable Routing, Post Mount Brakes
FRAME MATERIAL
6061 Aluminum Alloy
STEM
Folding Stem
PEDALS
WELLGO Platform, with Die Casting Body
CHAIN
KMC 9-Speed
SEAT POST DIAMETER
30.4mm
WHEELS/TIRE
CST BIG BOAT 20” X 4.00 Tires, All Purpose
RIMS
Aluminum Alloy Double Wall Rim
FRONT HUBS
Surface604 Aluminum
RECOMMENDED RIDER HEIGHT
For Riders: 5’2” - 6’6”
NET WEIGHT (INCLUDING BATTERY)
(Including Battery) 28.1 KG (62 LBS) and (Without Battery) 24.4 KG (53.8 LBS)
BATTERY WEIGHT
14AH battery 3.63KG/8.0lbs
WEIGHT CAPACITY
285lbs (130kg)
