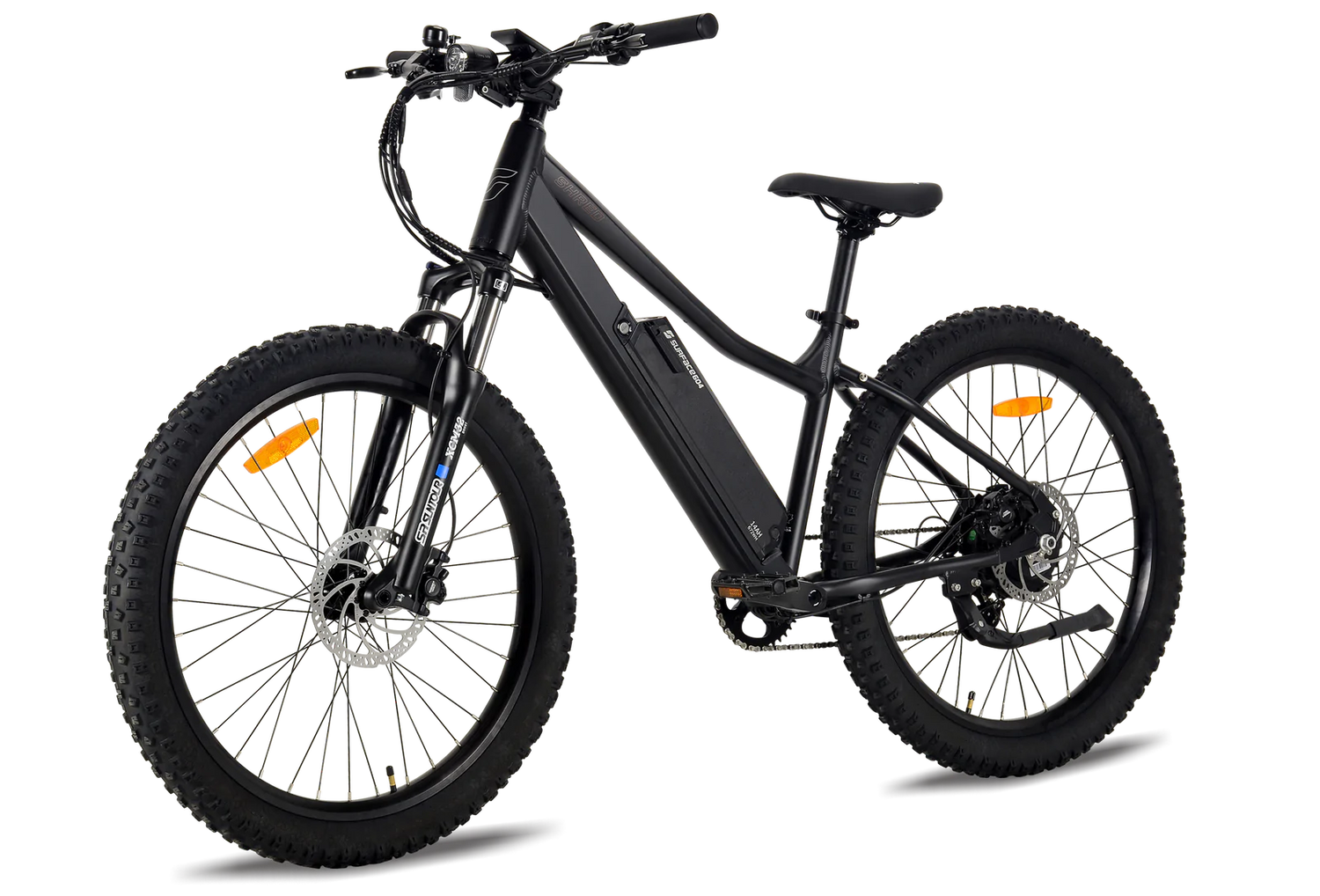

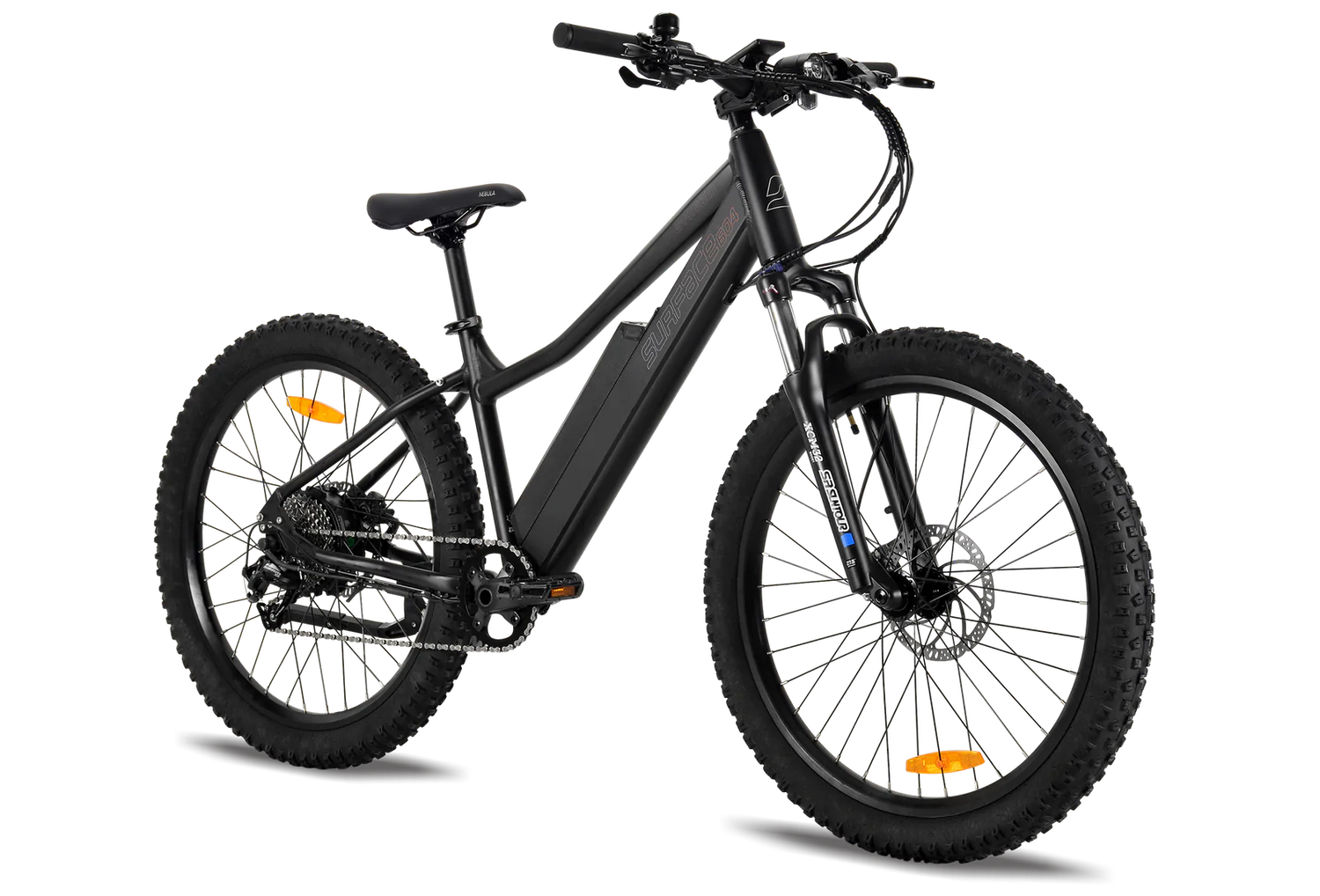

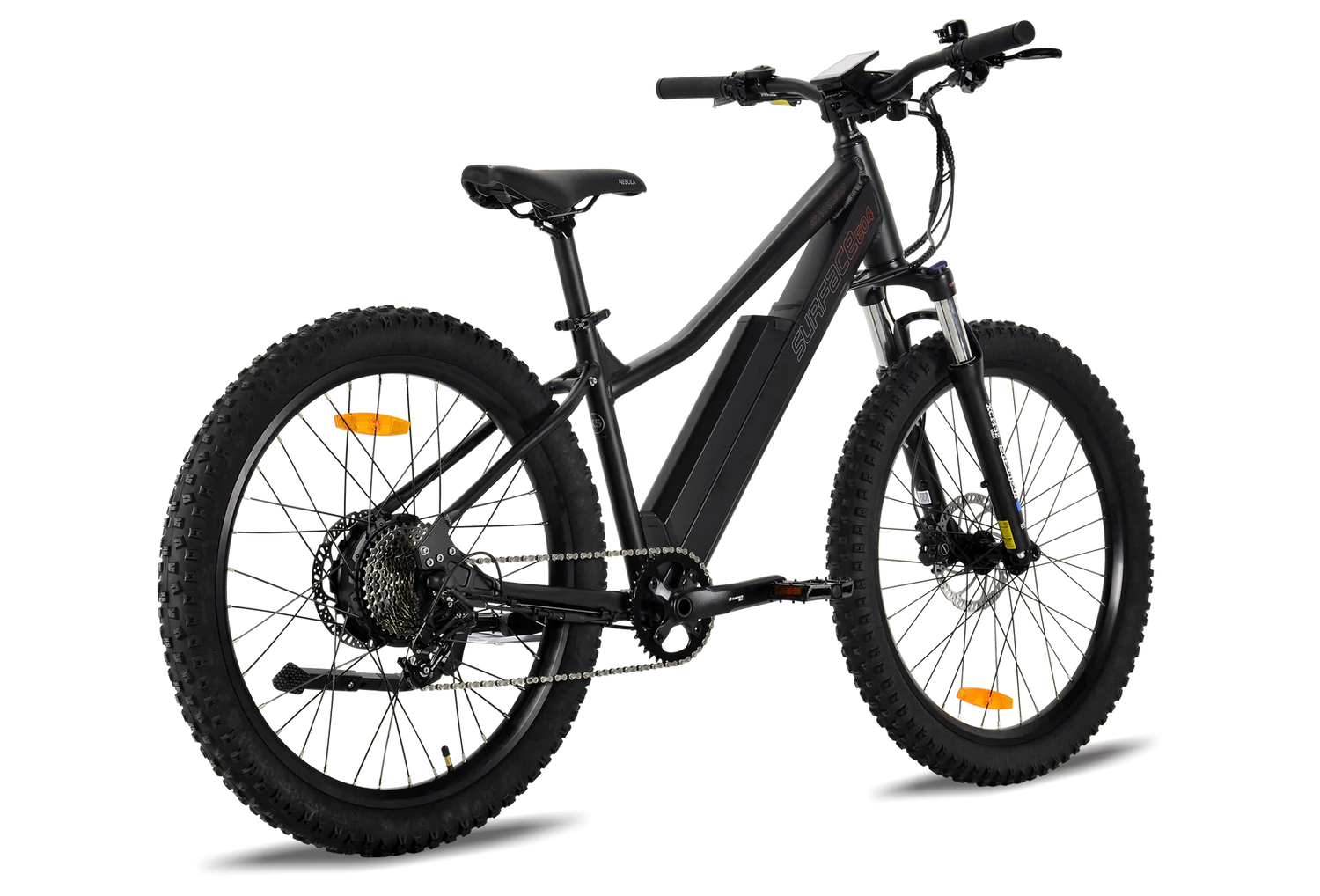

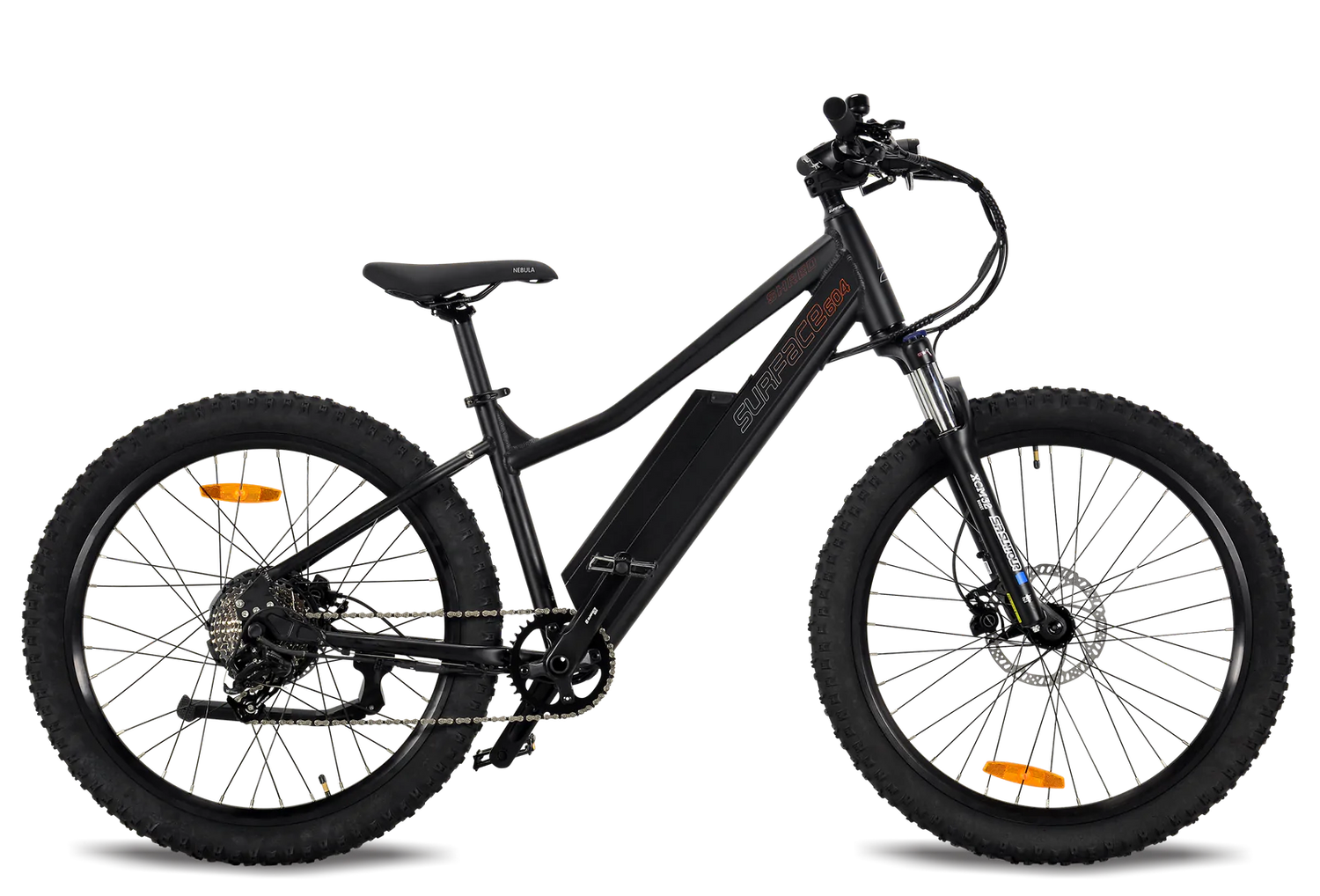

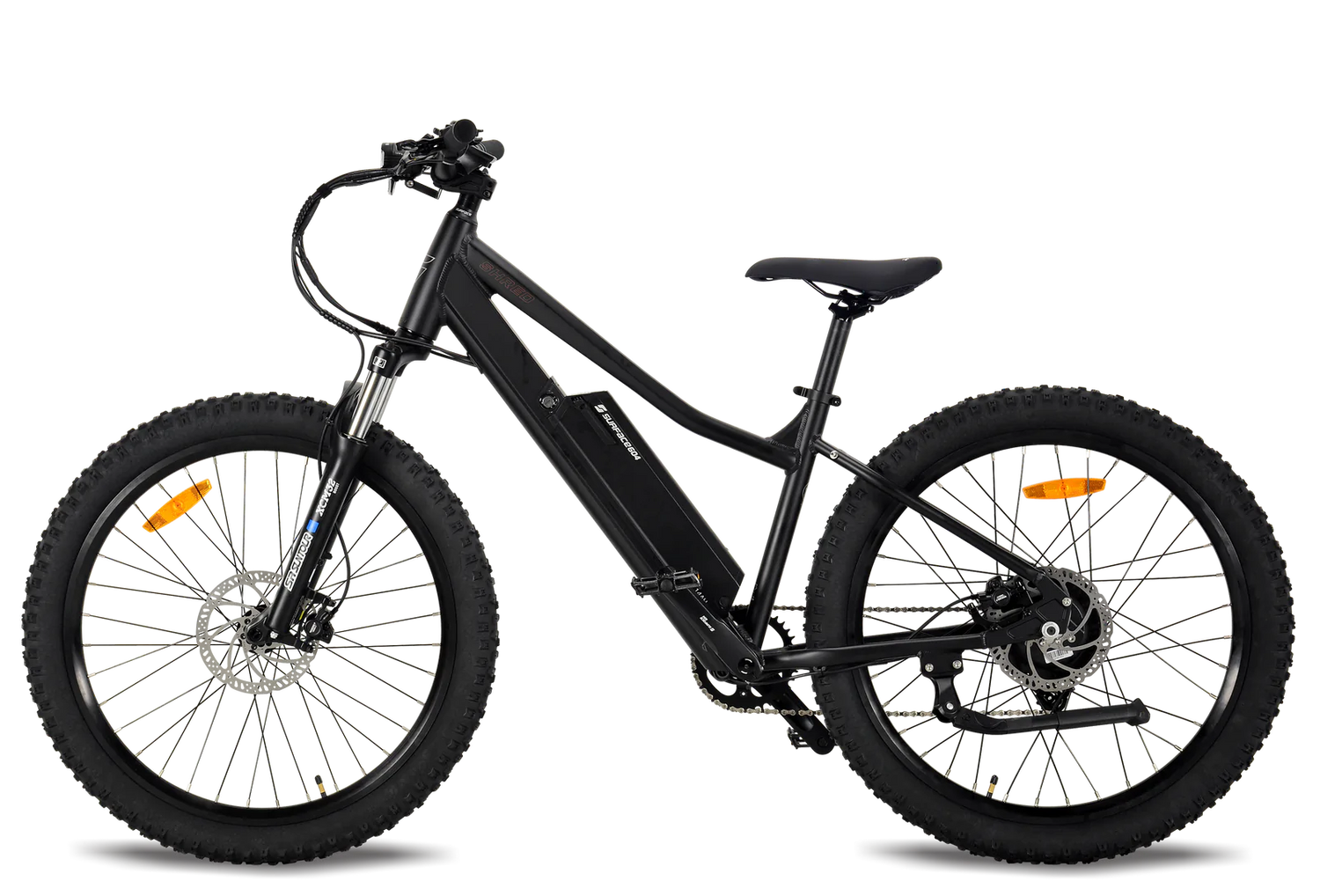

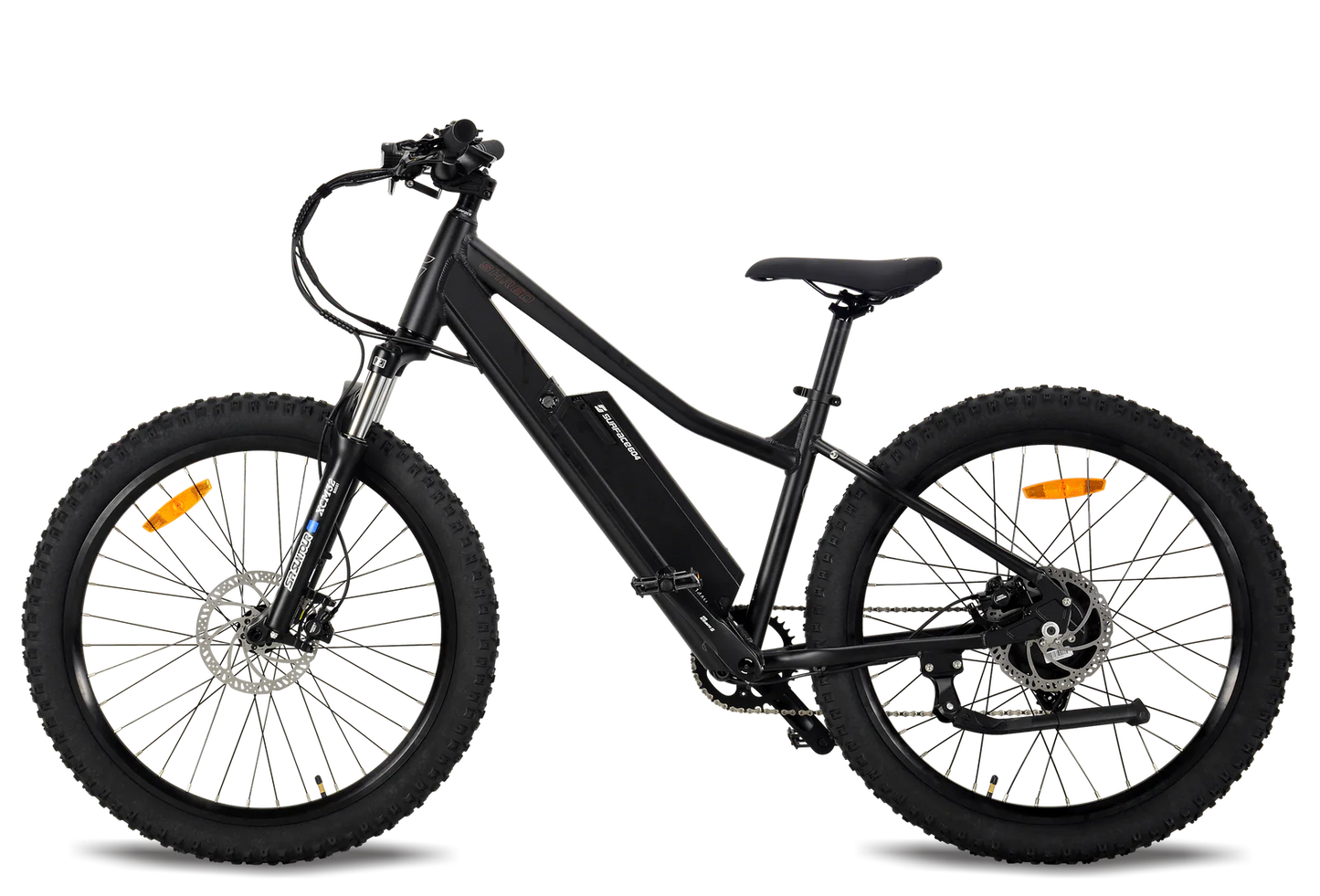

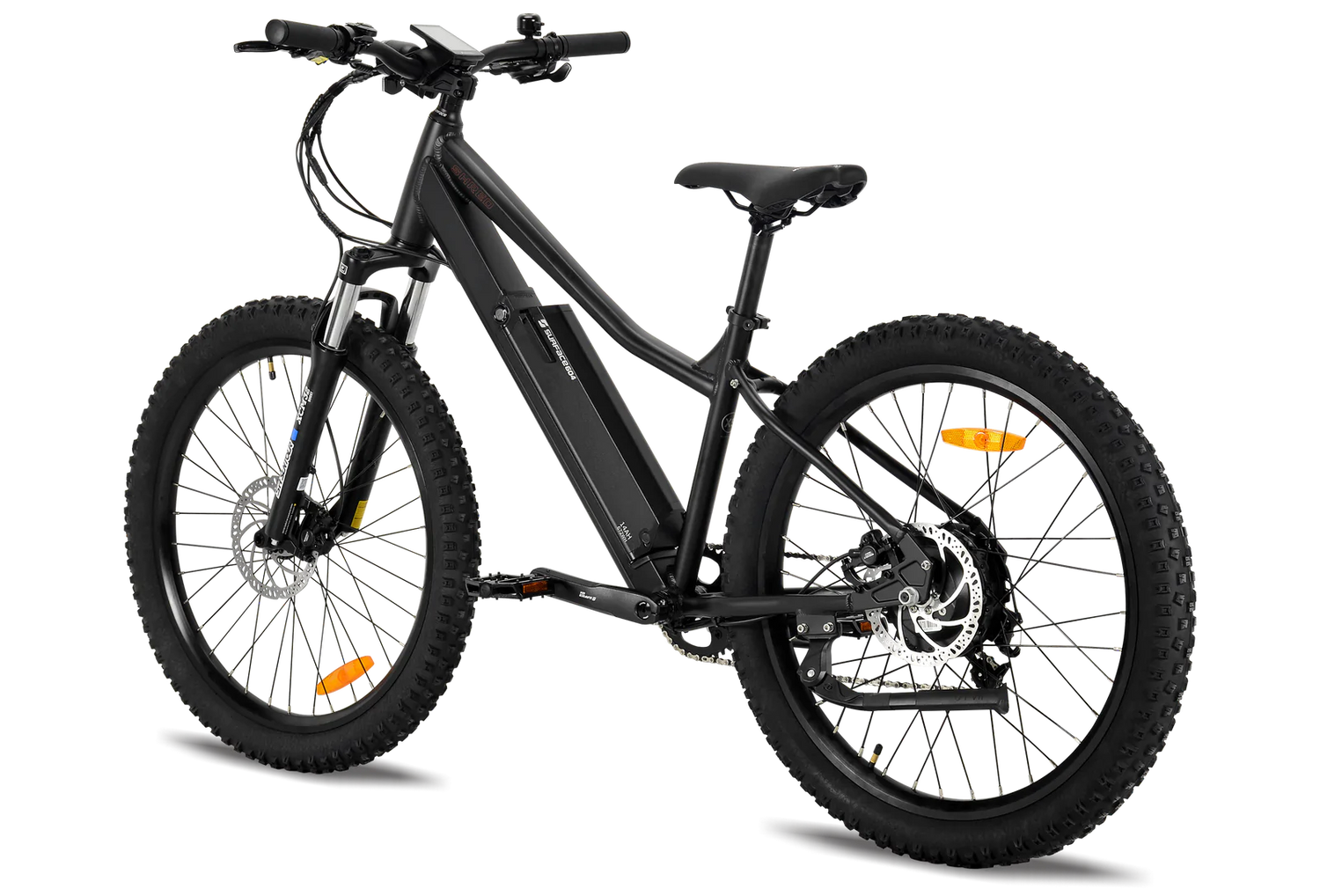

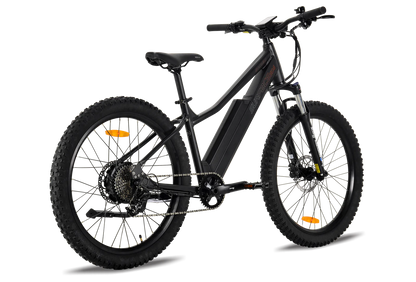

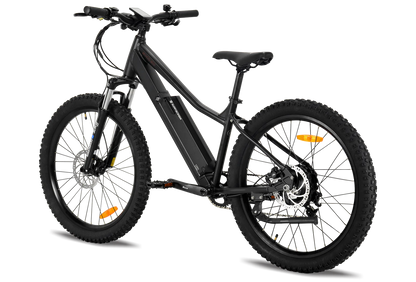

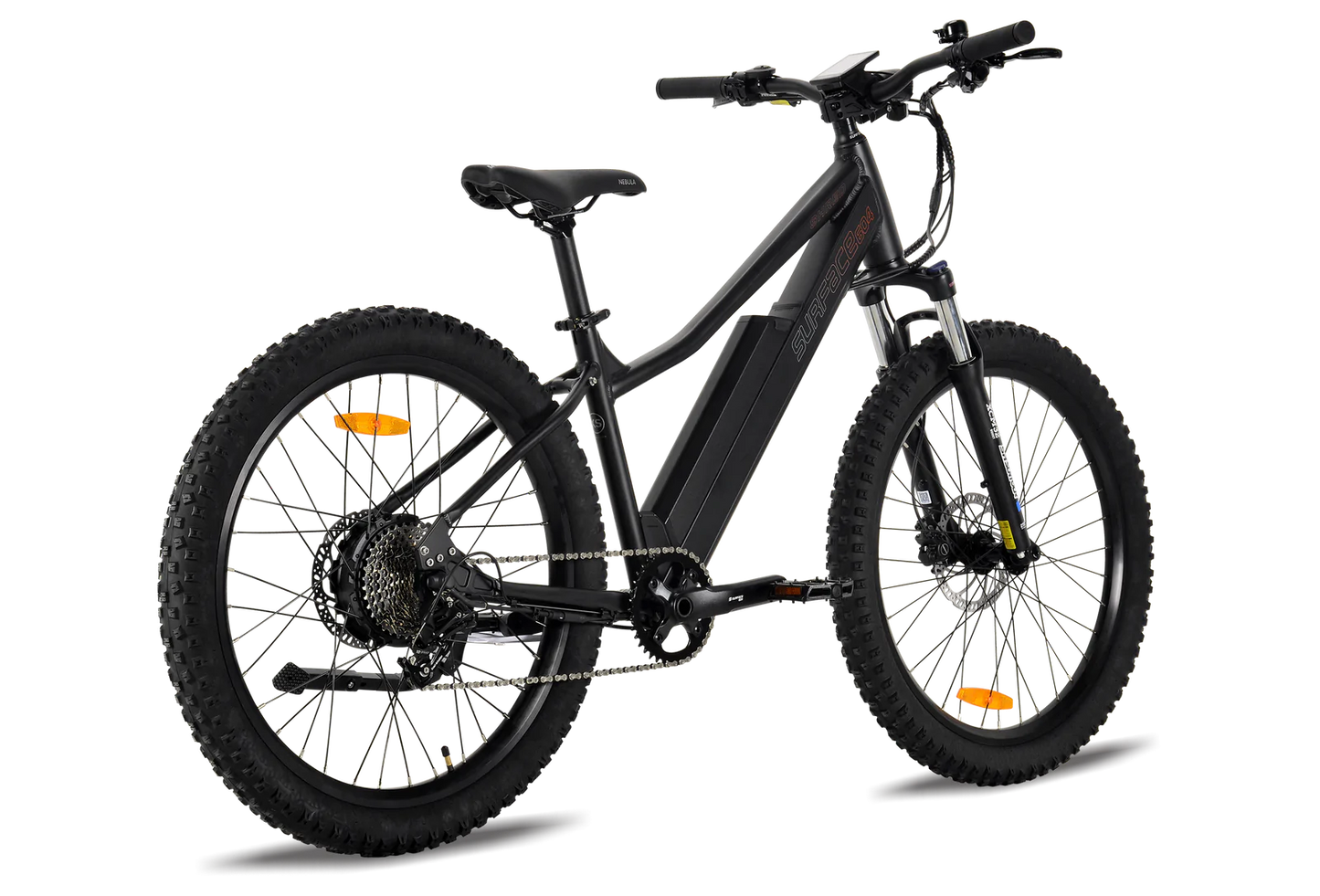

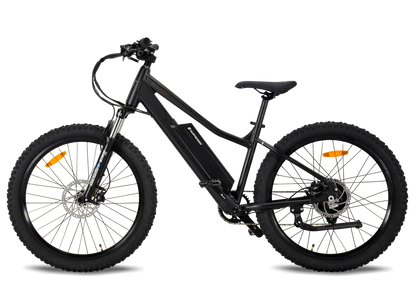

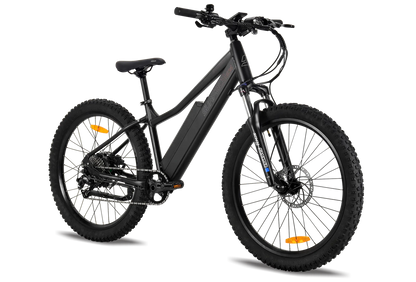

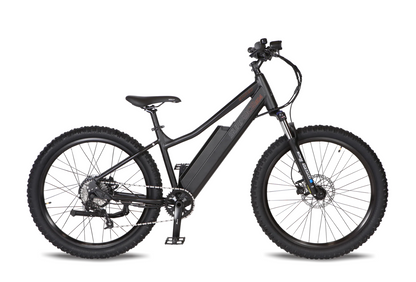

Surface 604 - Shred XS E-bike
Surface 604 - Shred XS E-bike
Quantity
MOTOR
eMTB Specific 500W (Peaks At 750W) Bafang Geared Hub Brushless Motor
DRIVE MODE
Drop Out Torque Sensing Pedal Assist with a Throttle
TORQUE
65Nm of Torque
THROTTLE
Thumb Push Activated Throttle
CONTROLLER
SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
TOP SPEED
20mph (32kmh)*, Comes as Class 2
(Unlocked) 30mph (48kmh), as Class 3
BATTERY
Included: 48V 14Ah / 672Wh
Samsung lithium-ion 18650 cells
Upgrade option: 48V 20Ah / 960Wh
Samsung lithium-ion 21700 cells
BATTERY RANGE
Up to 45mi (72km) with a 48V14Ah Battery
Up to 65mi (105km) with a 48V20Ah Battery
BATTERY CHARGE TIME
3-4 Hours for a Full Charge from Empty
DISPLAY TYPE
SURFACE604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2022
LIGHTS
BÜCHEL SHINY 120 LED Headlight
FORK
SR Suntour XCM32, Suspension Air Fork (110mm Axle Thru Hub)
MOTOR WIRE HARNESS
30Ah, can handle up to 120C current
DERAILLEUR
SRAM X5 9-Speed 1-Piece Forged CNC with 2 Sealed Bearings
CASSETTE
SRAM 11-36T
SHIFT LEVERS
SRAM X5 Trigger Shift
BRAKES
TEKTRO E500, MTB Specific Hydraulic Disc Brakes
Post Mount, with Motor Inhibitors
CRANK SET
SAMOX 38T Front Sprocket, 170mm Crank Arms
ROTORS
180mm Front/Rear x 2.34mm Thick
BOTTOM BRACKET
SAMOX Sealed Bottom Bracket
FRAME TYPE
Straight steerer Headtube, Custom Reinforced Battery Mounts, Internal Cable Routing, Post Mount Brakes
FRAME MATERIAL
6061 Aluminum Alloy
HANDLEBAR
PROMAX Aluminum, 30mm Rise With 9° Backsweep, 720mm Wide
PEDALS
WELLGO Platform, with Die Casting Body
CHAIN
KMC 9-Speed
SEAT POST DIAMETER
30.4mm
SADDLE
Selle Royal "Essenza Plus" Gel Saddle.
Designed for trail, road use.
Adjustable up to 9 degrees
WHEELS/TIRE
Custom S604 Innova Dirt Tires 26" x 2.8"
RIMS
Aluminum Alloy Double Wall Rim, 26″x13Gx36H
FRONT HUBS
1-Piece Forged CNC with 2 Sealed Bearings, Cro-Mo Axle and Alloy QR
STANDOVER HEIGHT
Extra Small-Small: 26” (660mm)
RECOMMENDED RIDER HEIGHT
For Extra Small Riders: 4’8” - 5’7”
NET WEIGHT (INCLUDING BATTERY)
22.7 KG/50 lbs (14AH)
25.2 KG/55.6 lbs (20AH)
BATTERY WEIGHT
14AH battery 3.45KG/7.5lbs
20AH battery 4.65KG/10lbs
WEIGHT CAPACITY
285lbs (130kg) same as regular Shred
