Surface 604

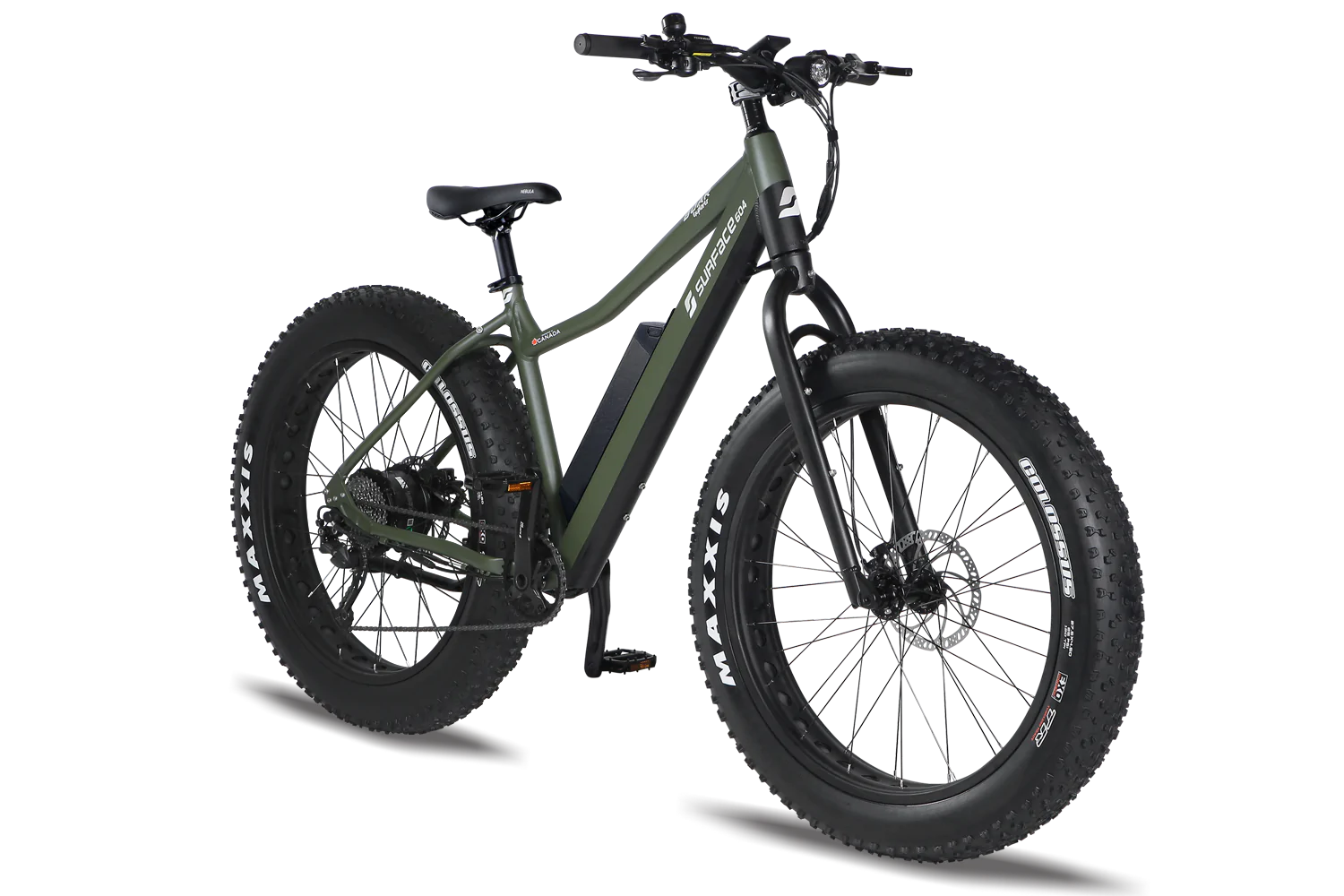

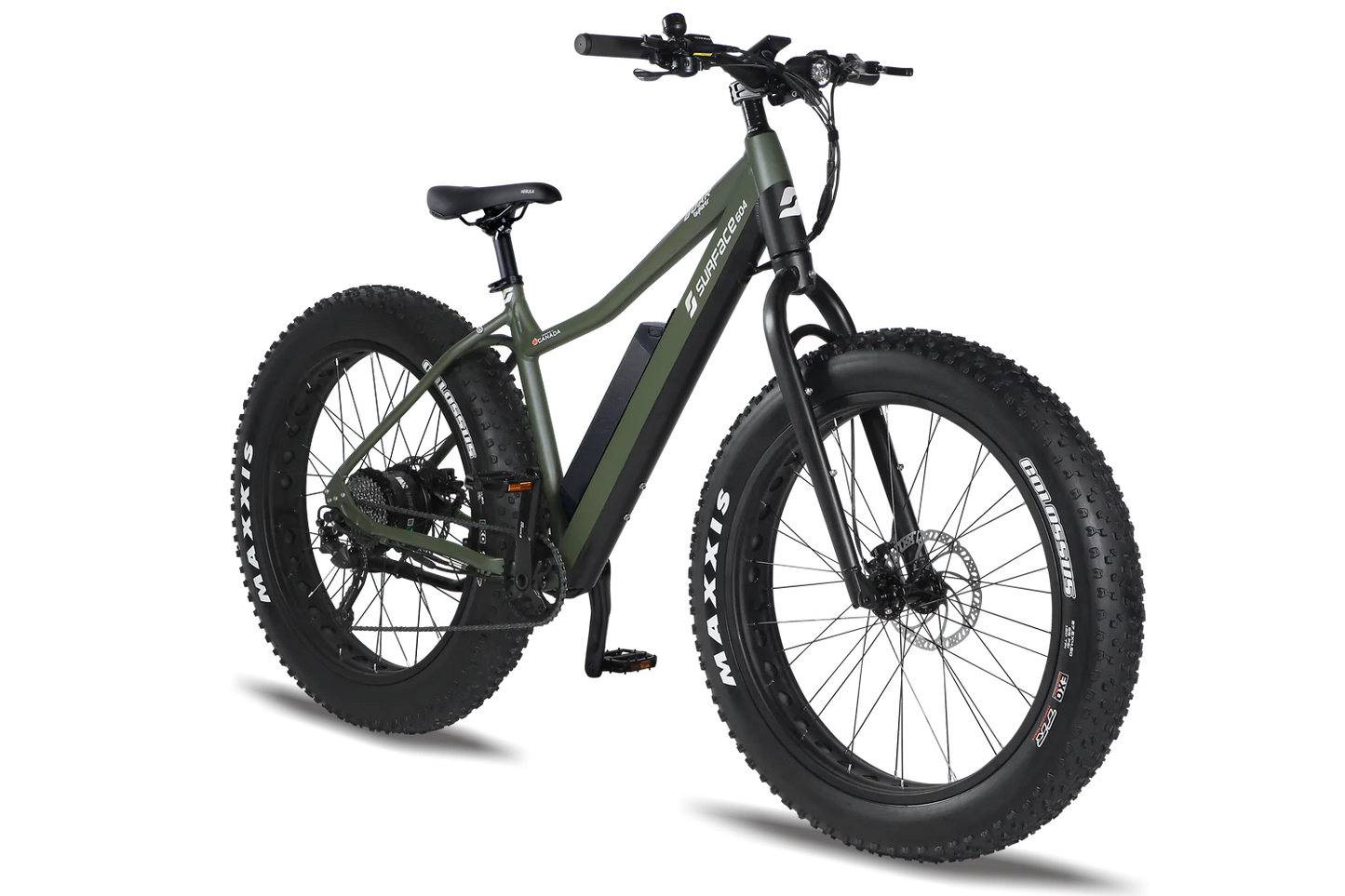

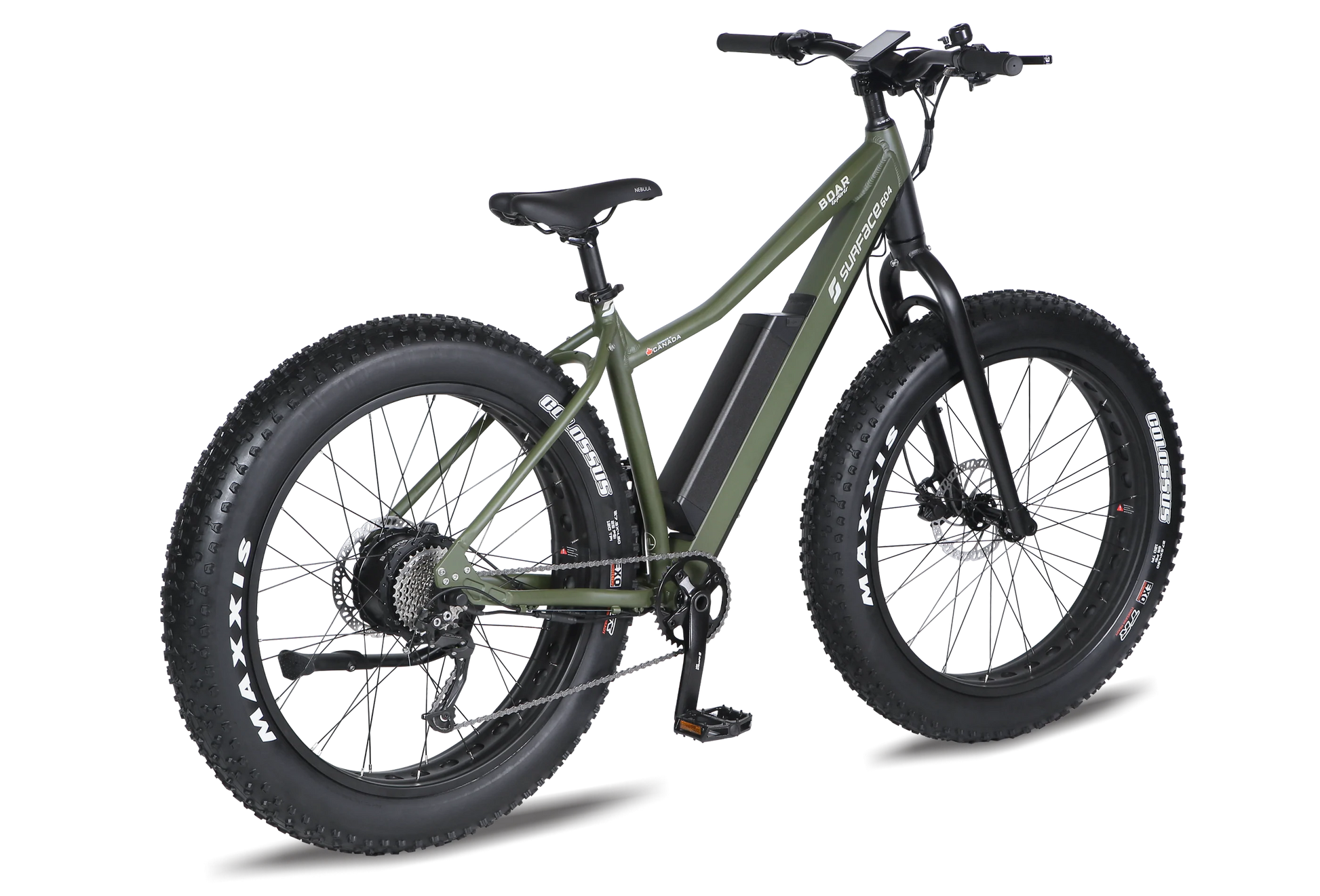

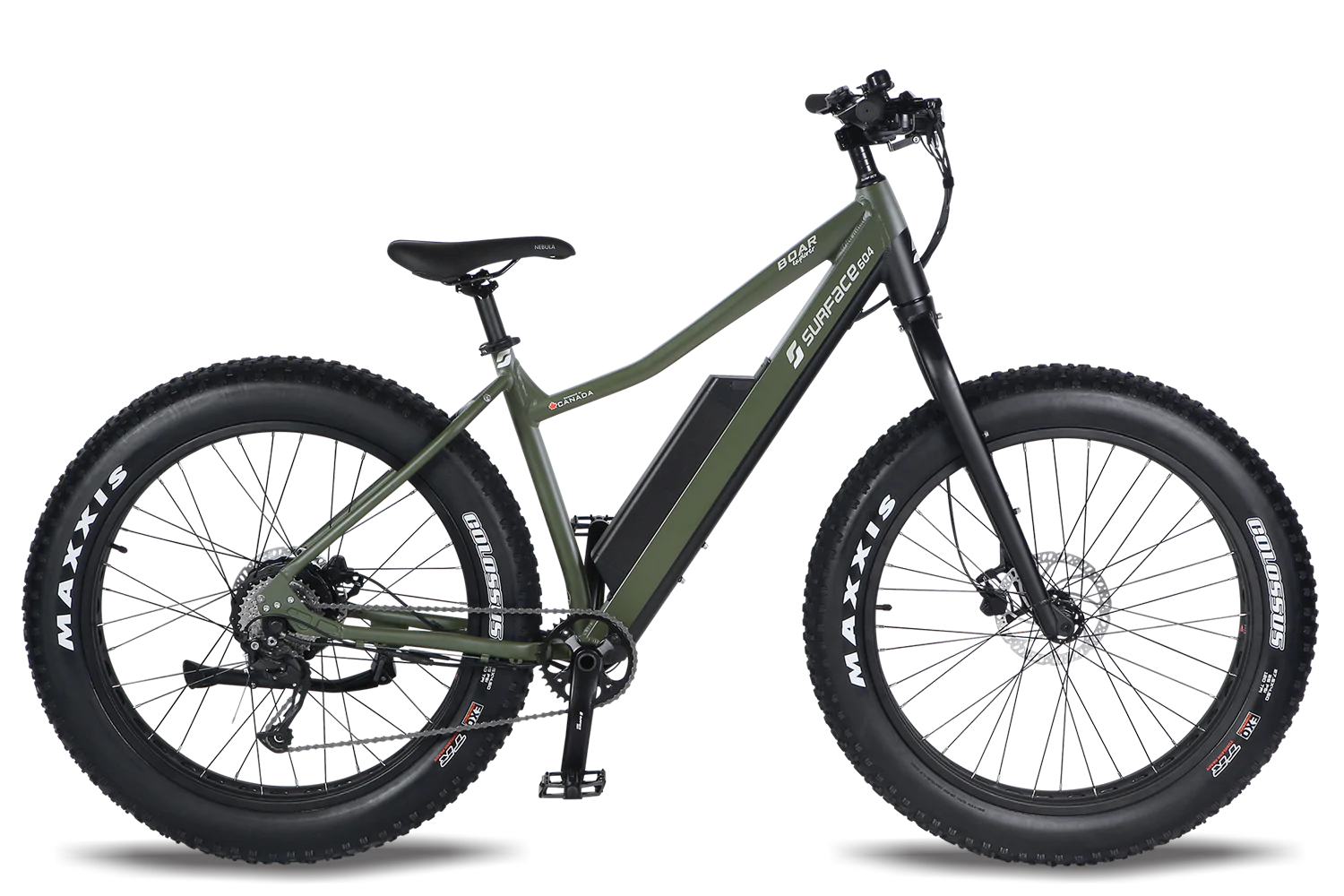

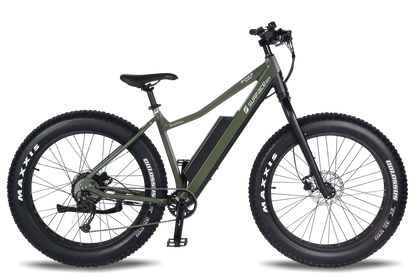

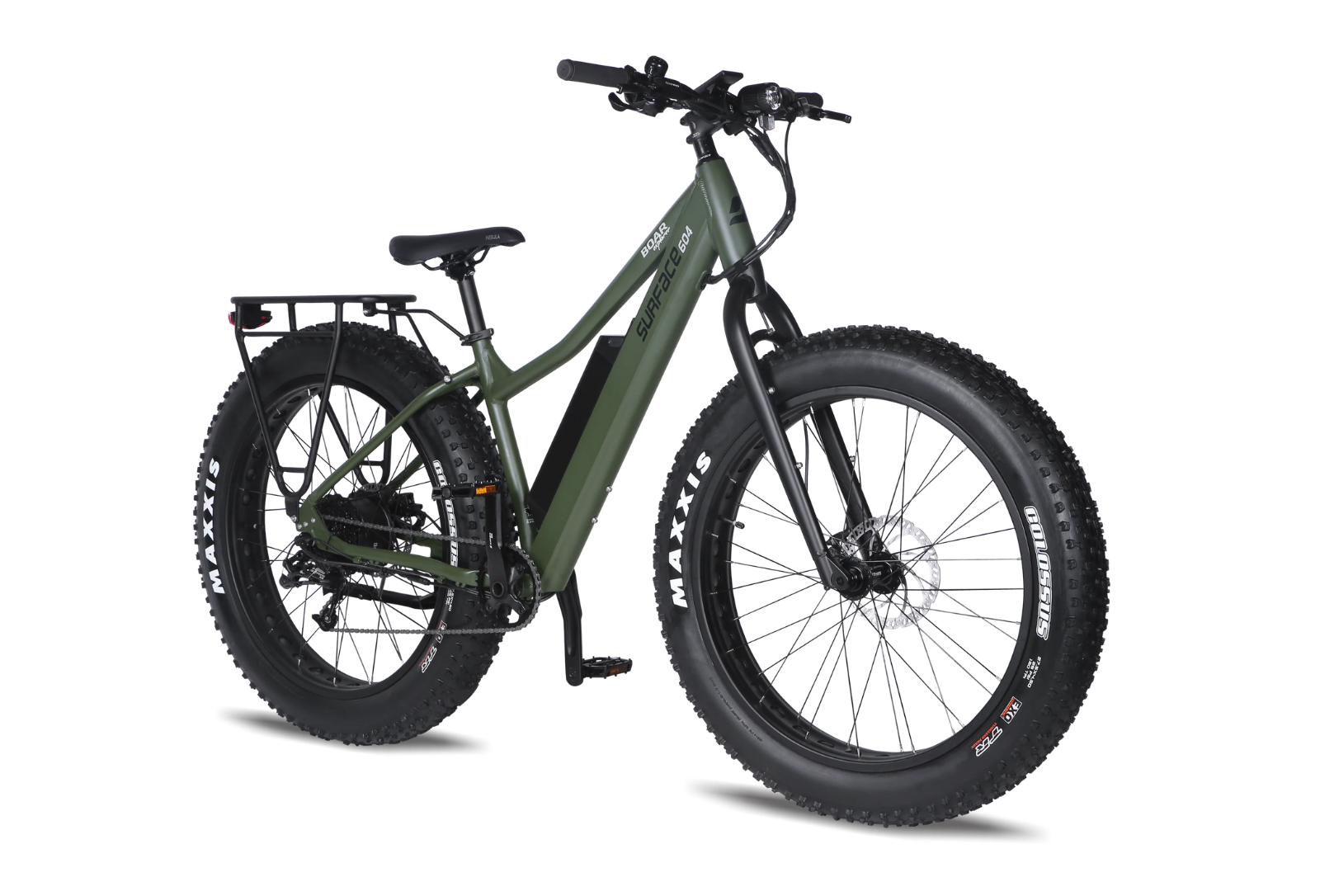

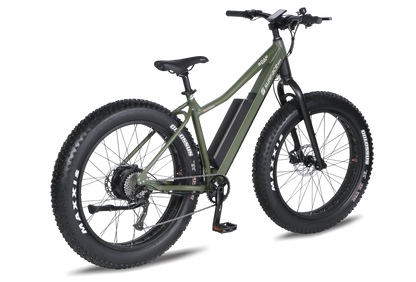

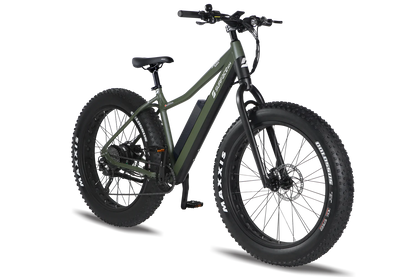

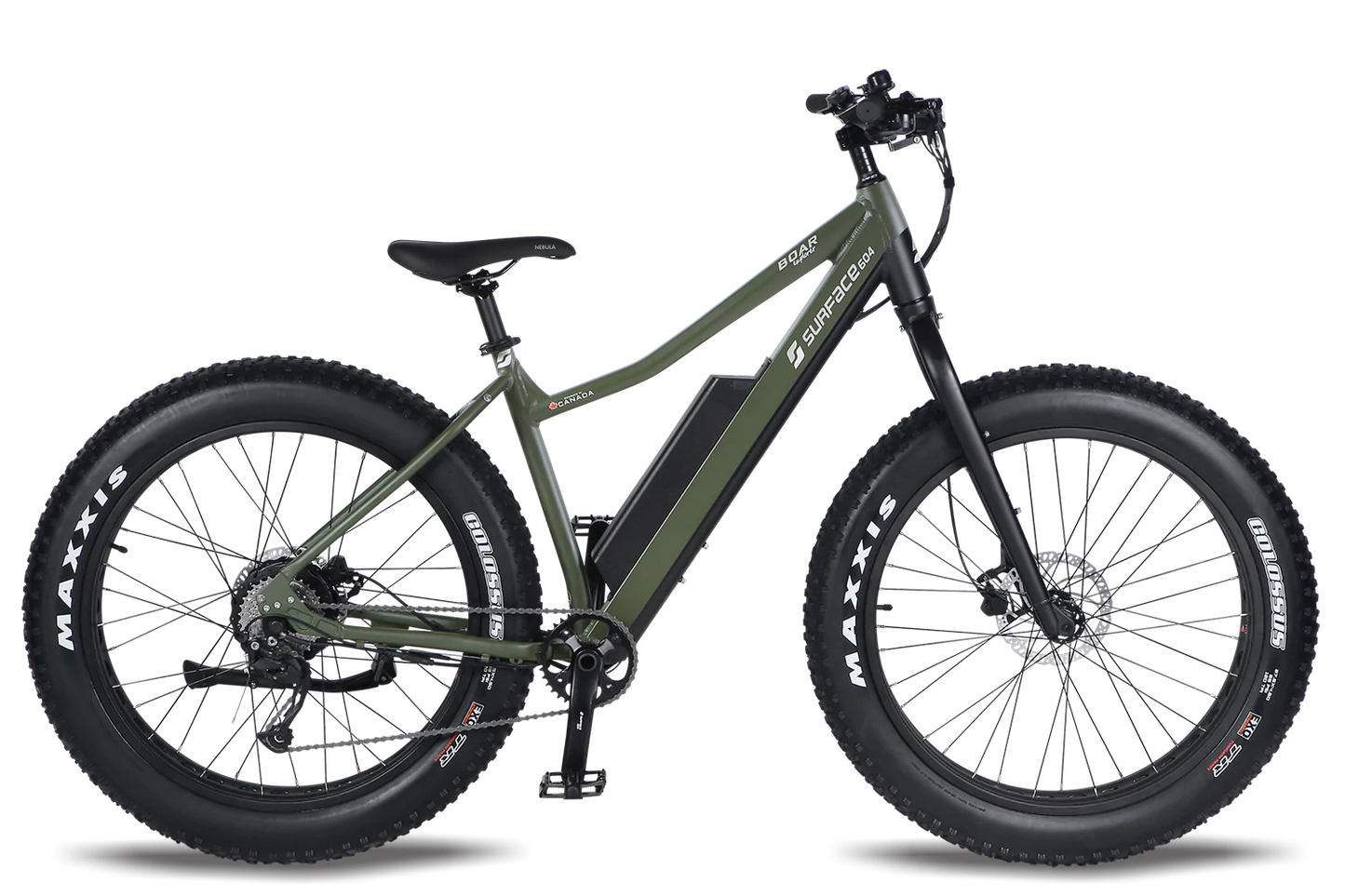

Surface 604 - Boar Explorer

Surface 604 - Boar Explorer

Size

MOTOR

High Torque 500W (Peaks At 750W) Fat Bike Specific Bafang geared hub motor

DRIVE MODE

Drop Out Torque Sensing Pedal Assist with a Throttle

TORQUE

80Nm of Torque

THROTTLE

Thumb Push Activated Throttle

CONTROLLER

SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller

BATTERY RANGE

Upto 45mi (72km) with a 48V14Ah Battery
Upto 65mi (105km) with a 48V20Ah Battery

BATTERY CHARGE TIME

3-4 Hours for a Full Charge from Empty

DISPLAY TYPE

SURFACE604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2022

LIGHTS

BÜCHEL SHINY 120 LED Headlight

FORK

Proprietary design, tapered steerer
Custom 6061 Aluminum fork

MOTOR WIRE HARNESS

30Ah, can handle up to 120C current (upgraded)

DERAILLEUR

SHIMANO ALIVIO 9-Speed Drivetrain

CASSETTE

SRAM 9-Speed 11-34T

SHIFT LEVERS

SHIMANO ALIVIO 9-Speed Drivetrain

BRAKES

TEKTRO AURIGA Hydraulic Disc Brakes, Post Mount
180mm rotor with Motor Inhibitors

CRANK SET

SAMOX 36T front sprocket, 170mm crank arms

ROTORS

180mm Front/Rear x 2.34mm Thick

BOTTOM BRACKET

SAMOX Sealed Bottom Bracket

FRAME TYPE

Tapered Headtube, Custom Reinforced Battery Mounts
Internal Cable Routing, Post Mount Brakes

FRAME MATERIAL

6061 Aluminum Alloy

STEM

SURFACE604 3D forged alloy
barbore 31.8mm, height 45mm (New)

HEAD SET

SAMOX Tapered with Sealed Bearings 1 1/8" - 1 1/2"

HANDLEBAR

PROMAX aluminum, 670mm wide, 6° sweep
35mm rise, 31.8mm clamp diameter

PEDALS

WELLGO Platform, with Die Casting Body

CHAIN

KMC 9-Speed

SEAT POST DIAMETER

30.4mm

SADDLE

SR Selle Royal Nebula

WHEELS/TIRE

MAXXIS COLOSSUS 27.5" x 4.50", EXO Protection
Dual Compound, 1415g (per tire)

RIMS

27.5" X 100mm Single Wall Aluminum Alloy Rims With Cutouts

FRONT HUBS

Surface604 Aluminum

STANDOVER HEIGHT

Small-Medium: 28.5” (724mm)
Medium-Large: 30” (762mm)

RECOMMENDED RIDER HEIGHT

NET WEIGHT (INCLUDING BATTERY)

50lbs (22.7kg)

BATTERY WEIGHT

14AH battery 3.45KG/7.5lbs
20AH battery 4.65KG/10lbs

WEIGHT CAPACITY

285lbs (130kg)
