Surface 604

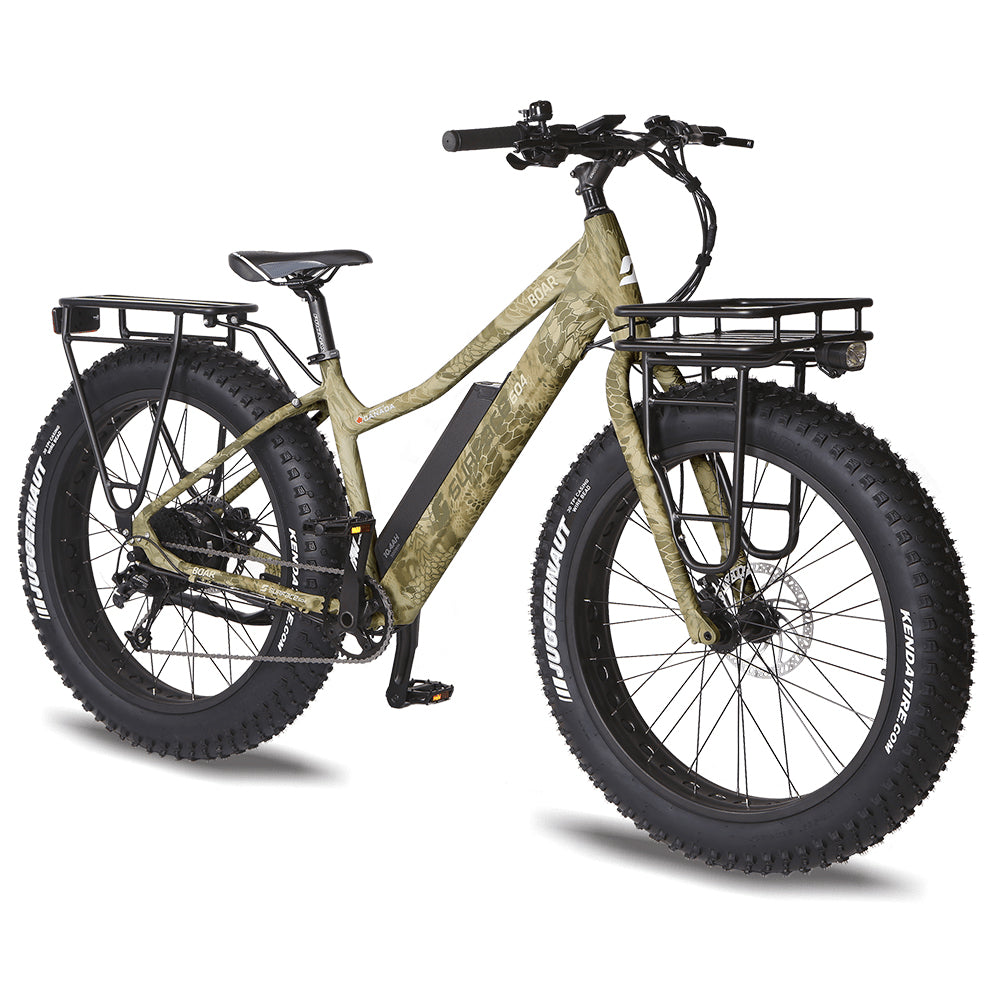

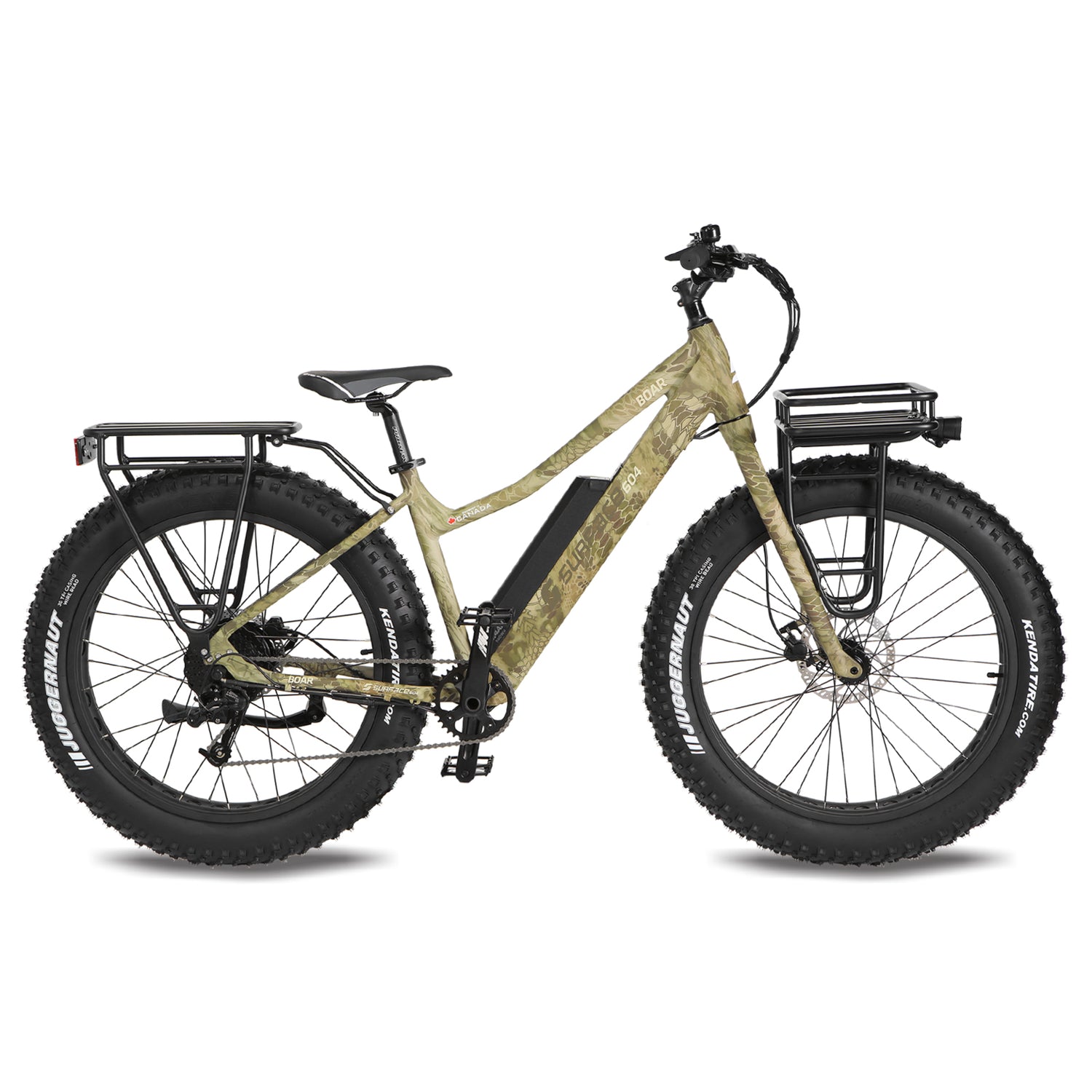

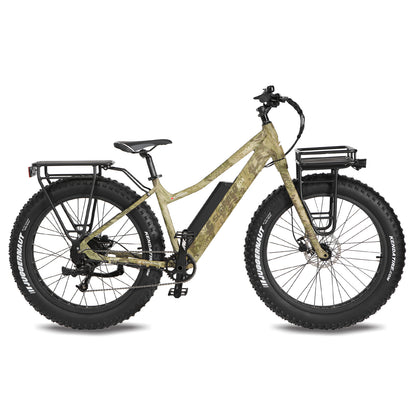

Surface 604 - Boar Hunter

Regular price $2,799.00 USD*
Regular price Sale price $2,799.00 USD*
Sale Sold out
Size
Call or Text For Prices & Availability
call or text (530) 503-9000

Winner, Best Electric Bikes of 2018/2019

EBR (ElectricBikeReview.com) is the most trusted source for electric bike reviews. Every year, EBR names a select few ebikes for their “Editor’s Choice for Best Electric Bikes”.



MOTOR

High Torque 500W (Peaks At 750W) Fat Bike Specific Bafang geared hub motor

DRIVE MODE

Drop Out Torque Sensing Pedal Assist with a Throttle

TORQUE

80Nm of Torque

THROTTLE

Thumb Push Activated Throttle

CONTROLLER

SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller

TOP SPEED

20mph (32kmh)*, Comes as Class 2
(Unlocked) 28mph (45kmh), as Class 3

BATTERY

Included: 48V 14Ah / 672Wh
Samsung lithium-ion 18X650mm cells
Upgrade option: 48V 20Ah / 960Wh
Samsung lithium-ion 21X700mm cells

BATTERY RANGE

Upto 45mi (72km) with a 48V14Ah Battery
Upto 65mi (105km) with a 48V20Ah Battery

BATTERY CHARGE TIME

3-4 Hours for a Full Charge from Empty

DISPLAY TYPE

SURFACE604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2022

LIGHTS

BÜCHEL Powerful AXENDO LED Headlight
Pre-Wired To Connect Rear Stop Light

FORK

Proprietary design, tapered steerer
Custom 6061 Aluminum fork

MOTOR WIRE HARNESS

30Ah, can handle up to 120C current (upgraded)

DERAILLEUR

SRAM X5 9-Speed

CASSETTE

SRAM 9-Speed 12-34T

SHIFT LEVERS

SRAM X5 Trigger Shift

BRAKES

TEKTRO AURIGA Hydraulic Disc Brakes, Post Mount
180mm rotor with Motor Inhibitors

CRANK SET

SAMOX 36T front sprocket, 170mm crank arms

ROTORS

180mm Front/Rear x 2.34mm Thick

FRAME MATERIAL

6061 Aluminum Alloy

STEM

eMTB specific Ergotec Bass 31.8mm (New)

HEAD SET

SAMOX Tapered with Sealed Bearings 1 1/8" - 1 1/2"

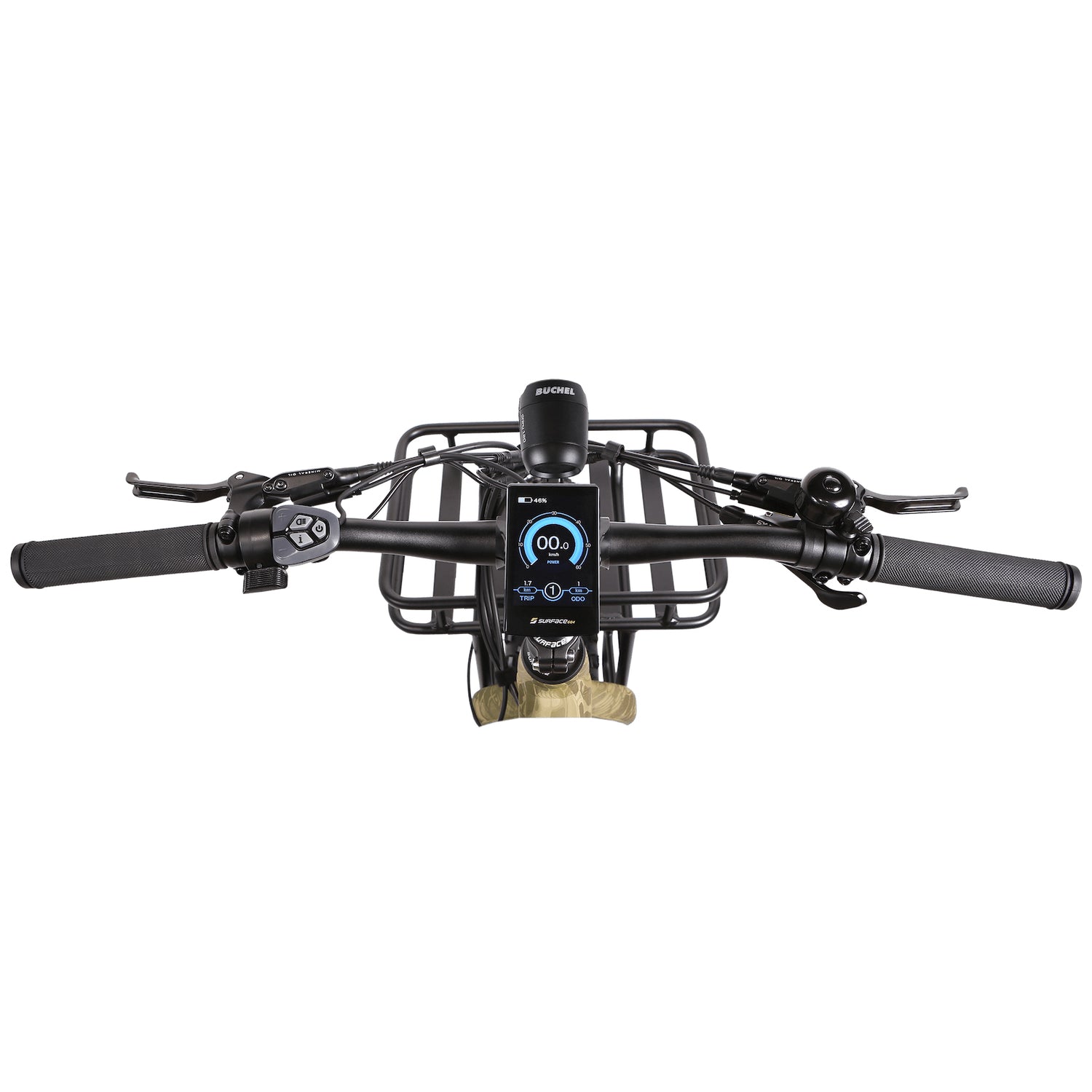

HANDLEBAR

PROMAX aluminum, 670mm wide, 6° sweep
35mm rise, 31.8mm clamp diameter

PEDALS

WELLGO Platform, with Die Casting Body

CHAIN

KMC 9-Speed

SEAT POST DIAMETER

30.4mm

SADDLE

SR Selle Royal Nebula

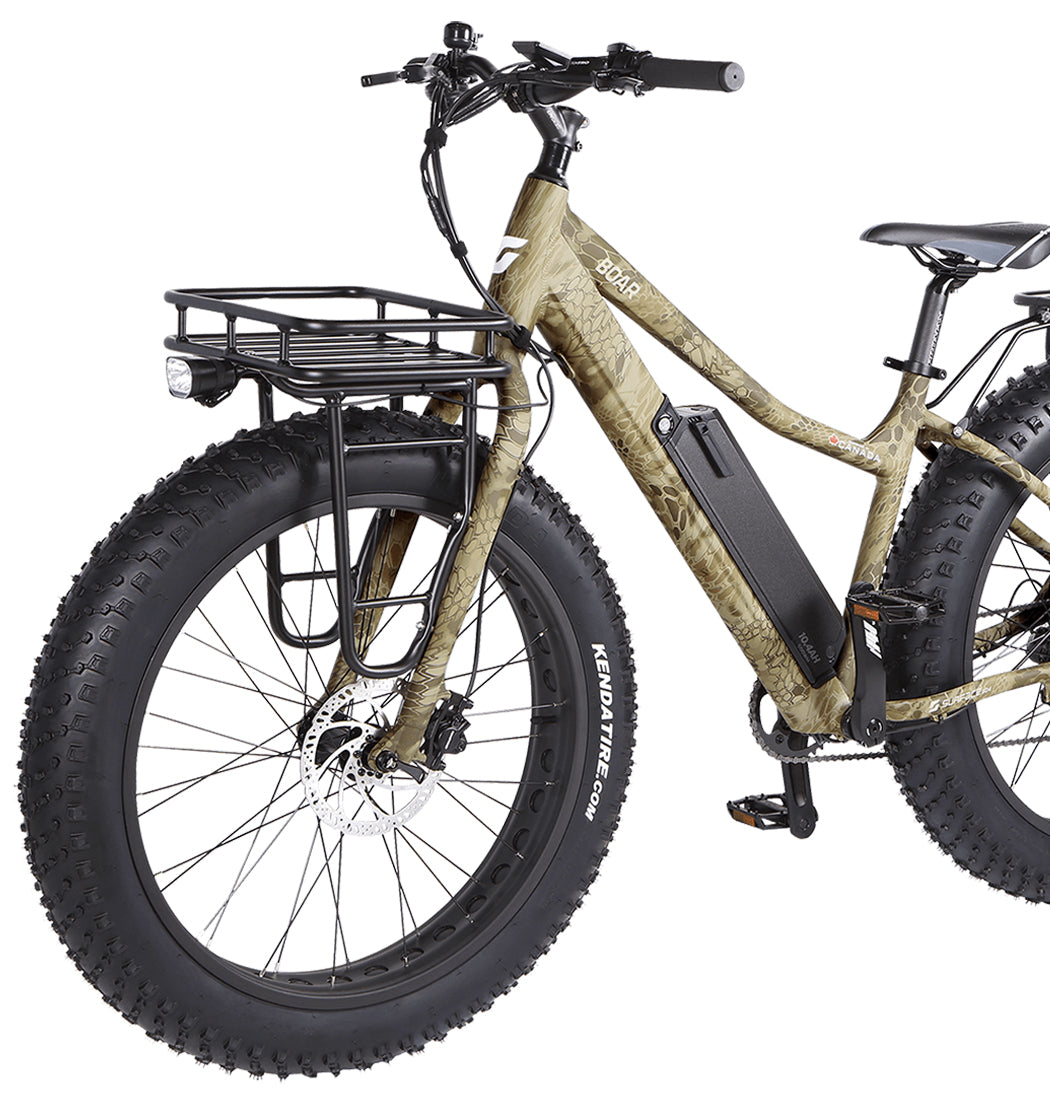

WHEELS/TIRE

KENDA Juggernaut Sport 26” x 4.50”

RIMS

26" X 100mm Single Wall Aluminum Alloy Rims With Cutouts

FRONT HUBS

Surface604 Aluminum Alloy

KICKSTAND

Adjustable Heavy-Duty Aluminum

STANDOVER HEIGHT

Small-Medium: 28.5” (724mm)
Medium-Large: 30” (762mm)

RECOMMENDED RIDER HEIGHT

NET WEIGHT (INCLUDING BATTERY)

50lbs (22.7kg)

BATTERY WEIGHT

14AH battery 3.45KG/7.5lbs
20AH battery 4.65KG/10lbs

WEIGHT CAPACITY

285lbs (130kg)
