Ranger AWD

details

Built for Rugged Traction on Slick Terrain

A capable, all-terrain utility eBike with dual hub-drive motors providing enhanced traction for slick terrain such as ice, mud, and deep sand.

specs

Motor: Dual 750W Hub-Drive Motors

Battery: 17.25AH/48V | 828Wh | 10 lbs

Frame: Alloy | Internal Cable Routing | Integrated Rack

Range: 29-52 Miles*

Display: QuietKat Custom Programed LCD Display

Throttle: Removable Thumb Throttle

Modes: Power Levels 1-5

Motor Control: Front Motor Only, Rear Motor Only, or AWD

Gears: Single Speed Drivetrain

Brakes: Tektro 2-piston Hydraulic Brakes

Suspension: RST 120mm Suspension Fork, Suspension Seatpost

Tires: Kenda Juggernaut 26” x 4.5” 30 TPI

Weight: 65 lbs

Load Capacity: 325 lbs

Color: Veil Cumbre Camo | Sonic

Axle: 175mm Solid Axle Rear. 135mm Solid Axle Front

Sizes: M | L

Top Speed: 28 mph+

Saddle: QuietKat Premium Comfort Saddle

features

Back by popular demand. An adaptable and robust electric bike designed to open exciting journeys on remote trails, simplify tasks around the ranch, and enable discreet, extended hunting expeditions while effortlessly carrying all your equipment.

With unmatched dual hub-drive performance and sturdy durability, the Ranger AWD eBike stands as the ultimate partner for outdoor enthusiasts aiming to venture farther and traverse diverse terrains. The Ranger AWD eBike boasts an impressive array of features including an integrated  swappable battery and powerful motor controller system that provides efficiency for extended range and power. The innovative dual 750w hub-drive motors deliver consistent performance, ensuring a smooth and comfortable ride whether you are in front, rear, or all-wheel drive.

With built-in redundancy, the Ranger can be operated through simple pedaling in the absence of power, or through throttle operation alone, enabling you to return home even in the absence of a functioning chain. The Ranger is equipped with an industry-leading load capacity facilitated by its integrated pannier cargo rack, premium components, and versatile all-terrain fat tires. It stands out as the preferred choice for adventurers seeking exceptional capability without straining their budget.

Key features:

Top-Tier performance: Improved 17.25Ah UL certified battery offers up to 52 miles on a single charge in ideal conditions. Extend your ride farther with an additional 17.25Ah battery or portable solar charger.

Premium components: Outfitted with a RST hydraulic suspension fork with 120mm of travel, hydraulic disc brakes, and a single speed drivetrain, the Ranger AWD fat-tire electric bike can handle rough terrain and rolling hills with ease.

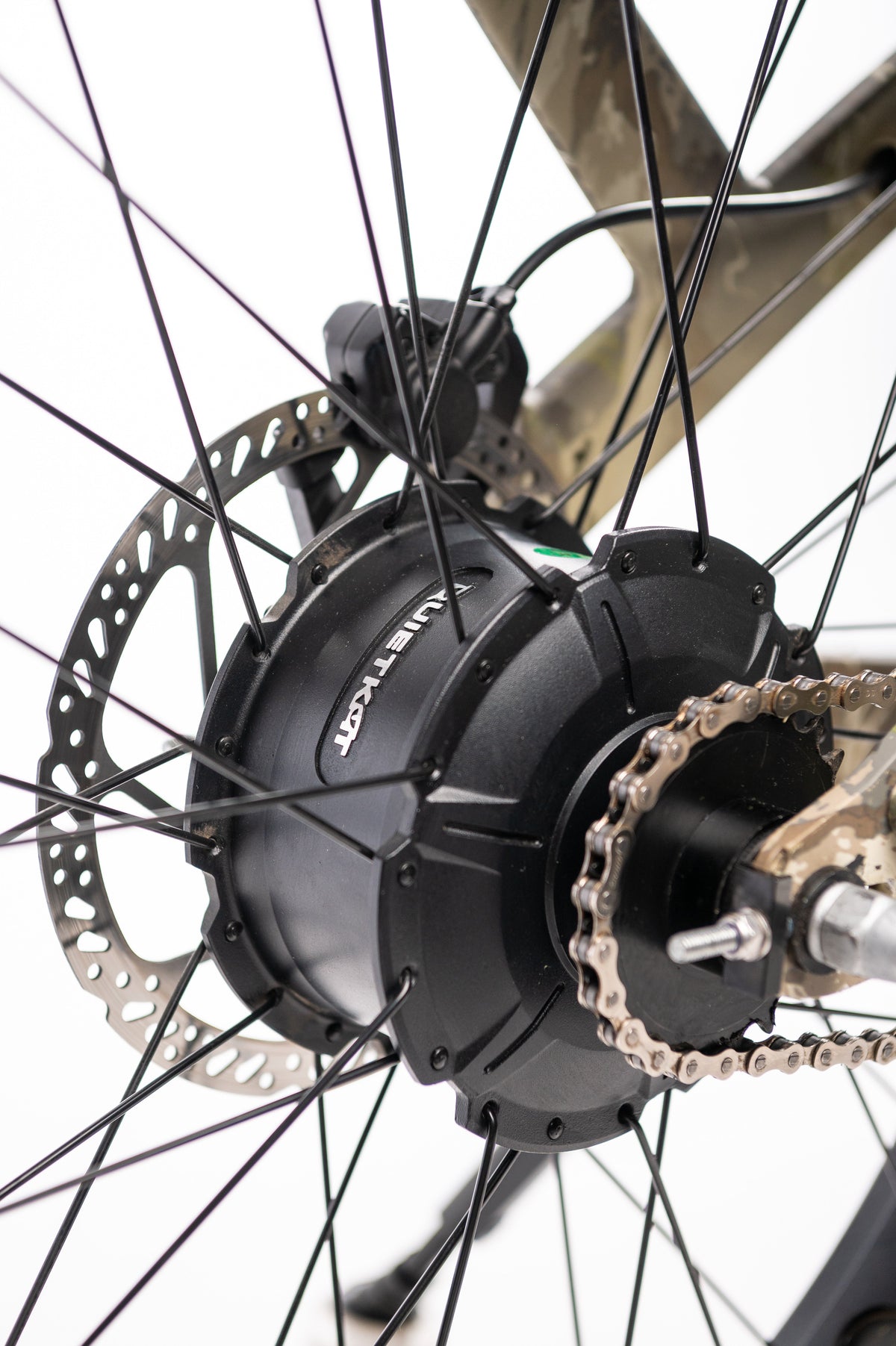

Dual hub-drive motors: Dual 750W hub-drive motors, with a motor selector switch for front, rear, or all-wheel drive, provide enhanced traction and controlled power output for varying terrain, delivering consistent, low-maintenance performance and ensuring you can return home even with a broken chain.

Durable drivetrain: The single speed drivetrain paired with a 1/2" eBike rated KMC chain allows for minimal maintenance required and eliminates the risk of a broken derailleur out in the backcountry.

Comfort geometry: Our rugged frame with integrated rear pannier rack has a load capacity of 325 lbs. and provides improved handling when you're deep in the backcountry or simply riding to the store. The premium comfort saddle and Suntour suspension seat post add comfort for your ride on any terrain.

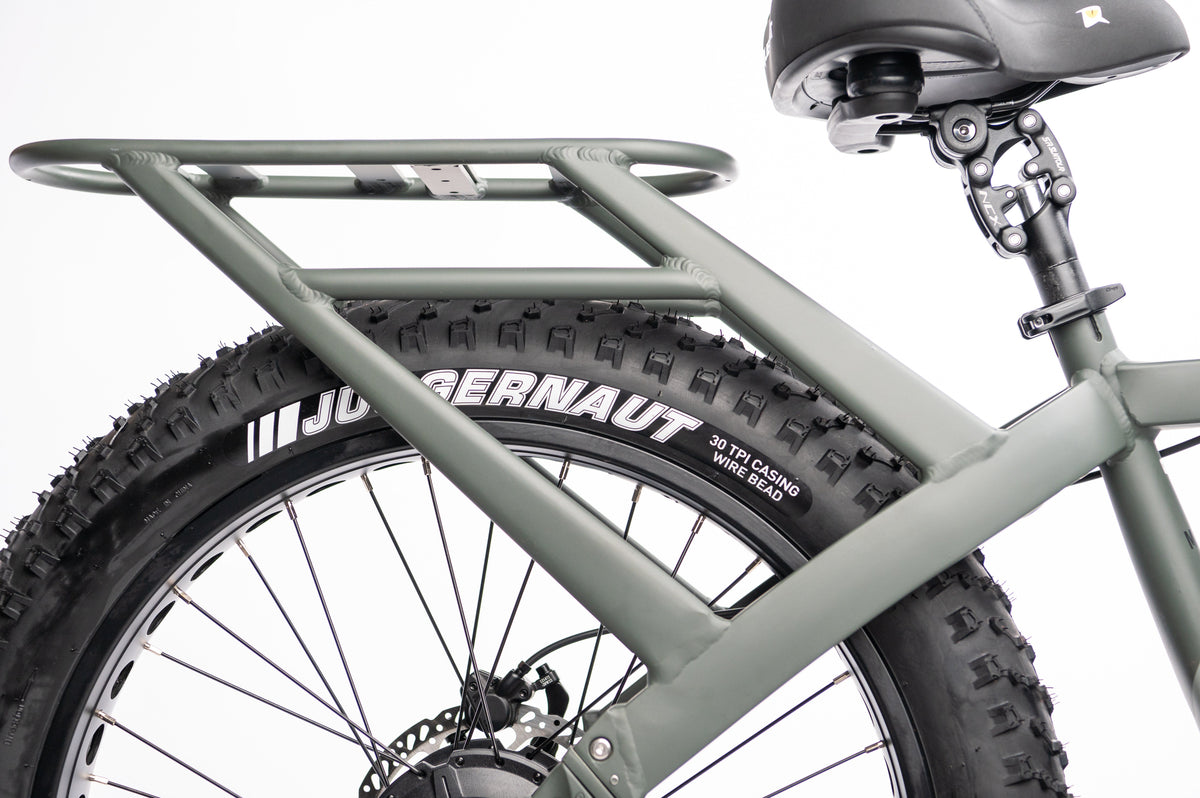

Integrated cargo rack: A heavy-duty built-in rear cargo rack with an industry-leading 100 lbs. of carrying capacity that allows you to haul even more.

All-terrain tires: Featuring all-terrain fat tires for added stability and traction, the Ranger can handle a variety of tough terrain from soft sand and snow to hardpack rocks and roots.

Improved braking: Equipped with an optimized set of Tektro two-piston hydraulic disc brakes and large 203mm rotors, the Ranger’s braking system provides confidence and control in all conditions.

Charge anywhere: Includes a standard wall charger and is also compatible with mobile and solar chargers available separately.

109 Point Inspection: An industry-leading quality assurance inspection ensures every bolt and connection are checked before it arrives.

*Range is an estimate and depends on a variety of real-world conditions including but not limited to weight, terrain, tire pressure, terrain, temperature, and wind. Learn more about eBike range in this article.

**QuietKat reserves the right to replace any part on our bikes with a suitable alternative of equal quality due to supply chain constraints in sourcing components.
