QUEST 750W

Display Manual

Specs:

• Range: 35-40 Miles
• Max Speed: 20 mph (Pedal Assist)
• Thumb Throttle: Up to 20 mph
• Motor: Bafang RMG062 , 48V 750W
• Battery: LG5000mah, 48V 15ah

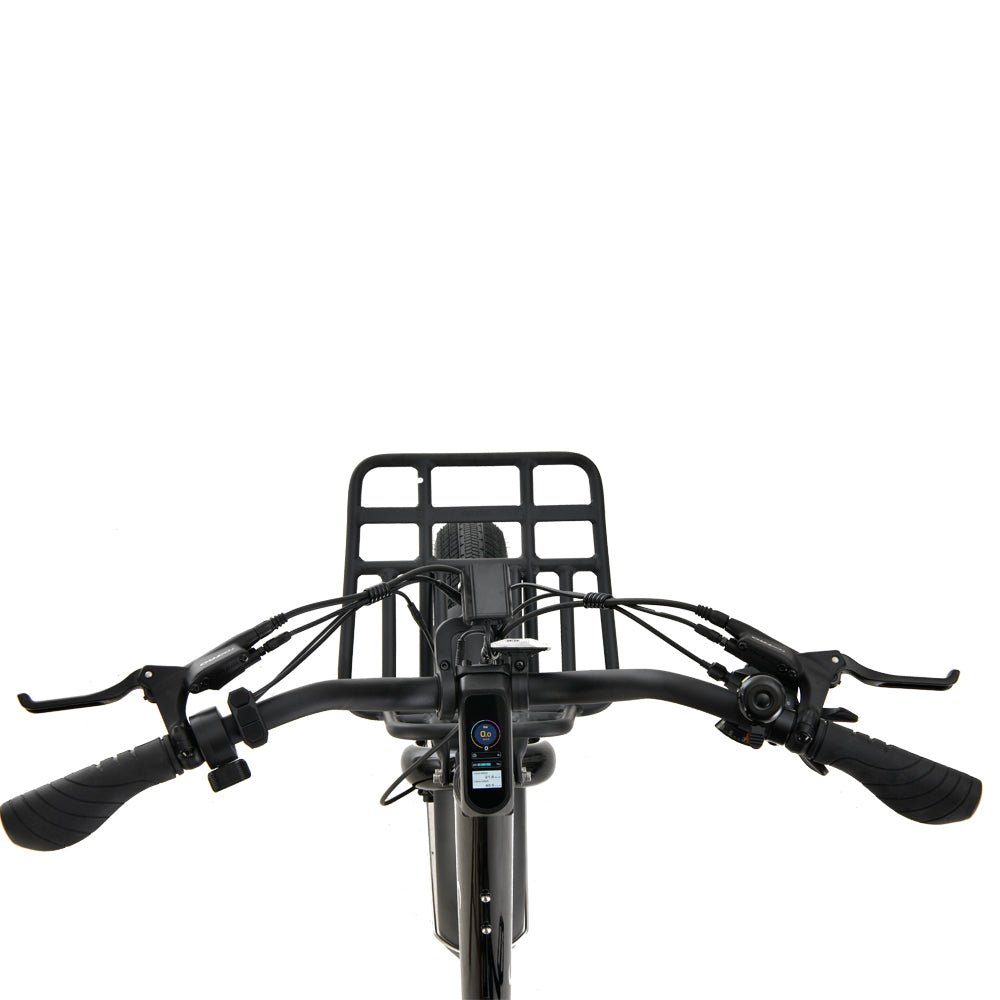

• Display: BC302 (w adjustable stem)
• Brakes: Tektro HD-E3520 hydraulic disc brake
• Shifter: Shimano 8 Speed SL-M315-8R
• Derailleur: Shimano RD-M310 8 Speed
• Tires: Kenda, K1270, 20x4.0
• Seat Post: 30.4*350mm
• Accessories: Integrated Lighting, Fenders, Front Rack (L12",W12.75"), Rear Rack (L22",W6"), Center Mount Dual Kickstand, Passenger Floorboards, *Passenger Kit (Sold Separately)
• Load Capacity: 330lbs Cargo/Rider total

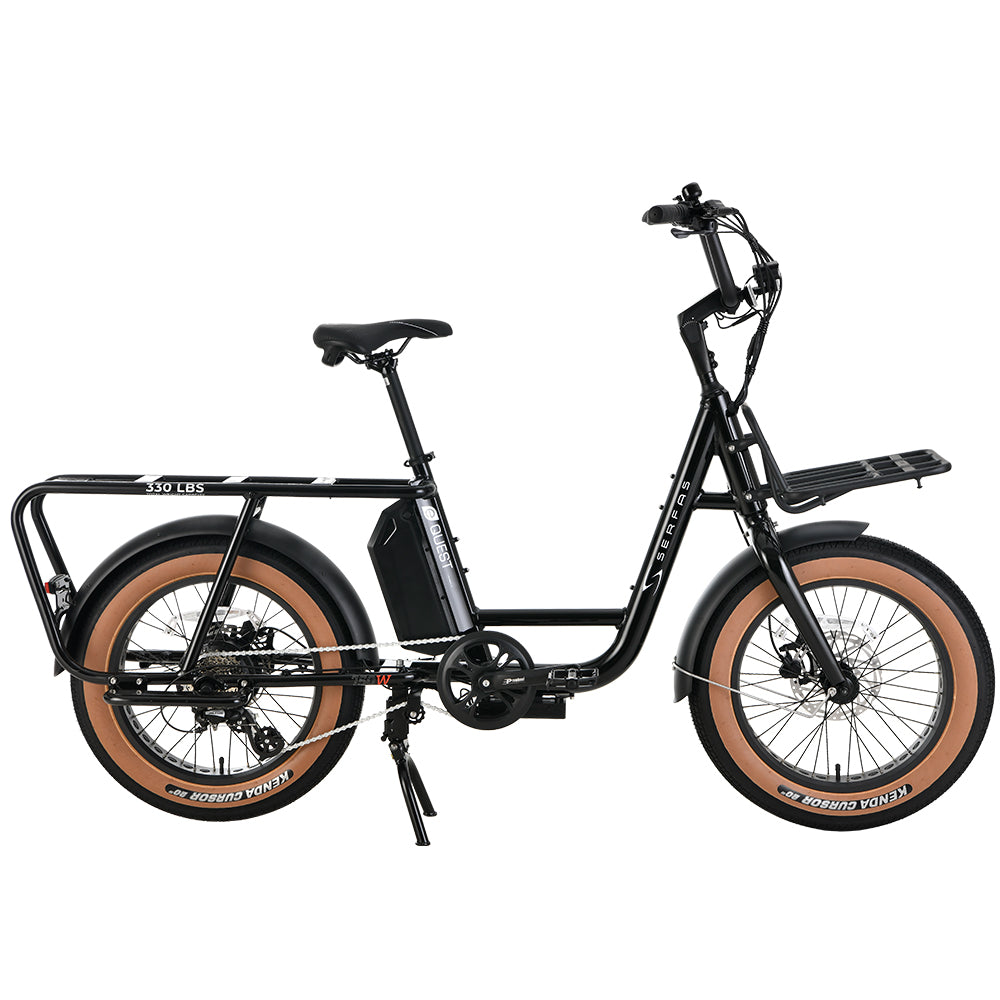

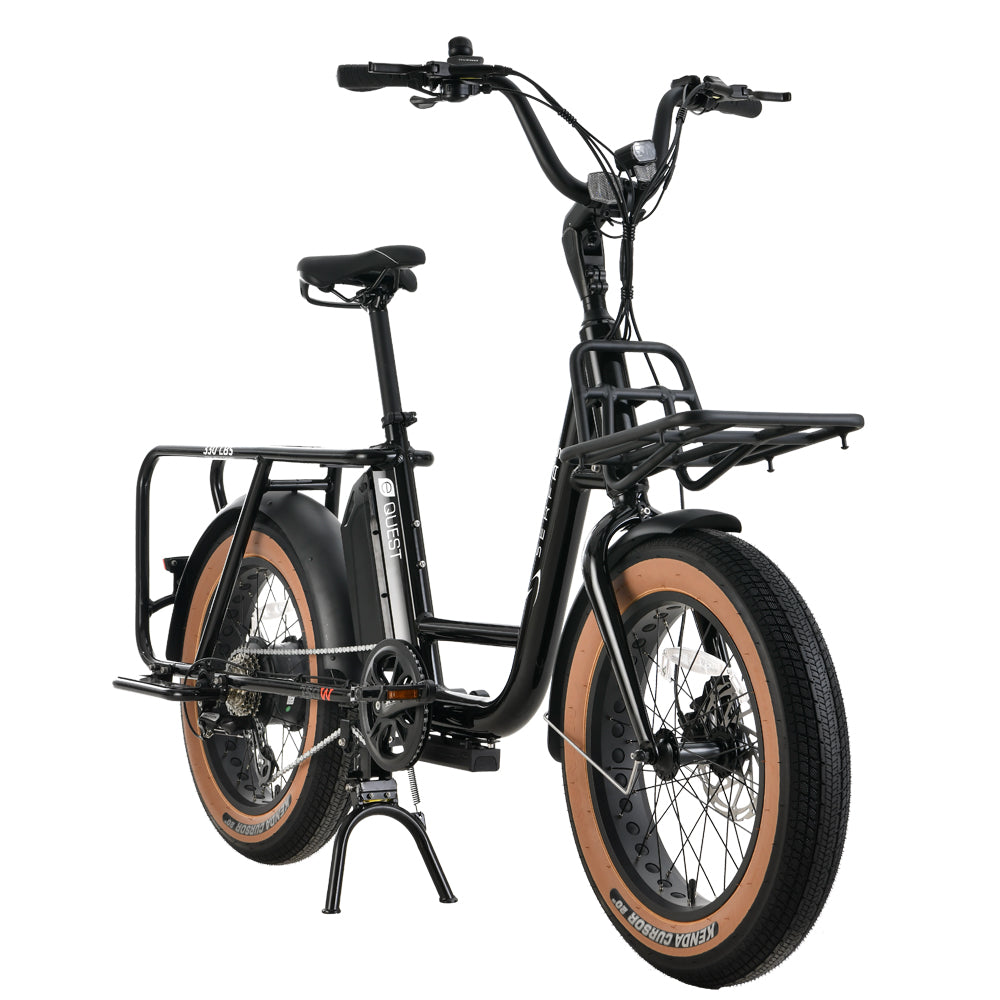

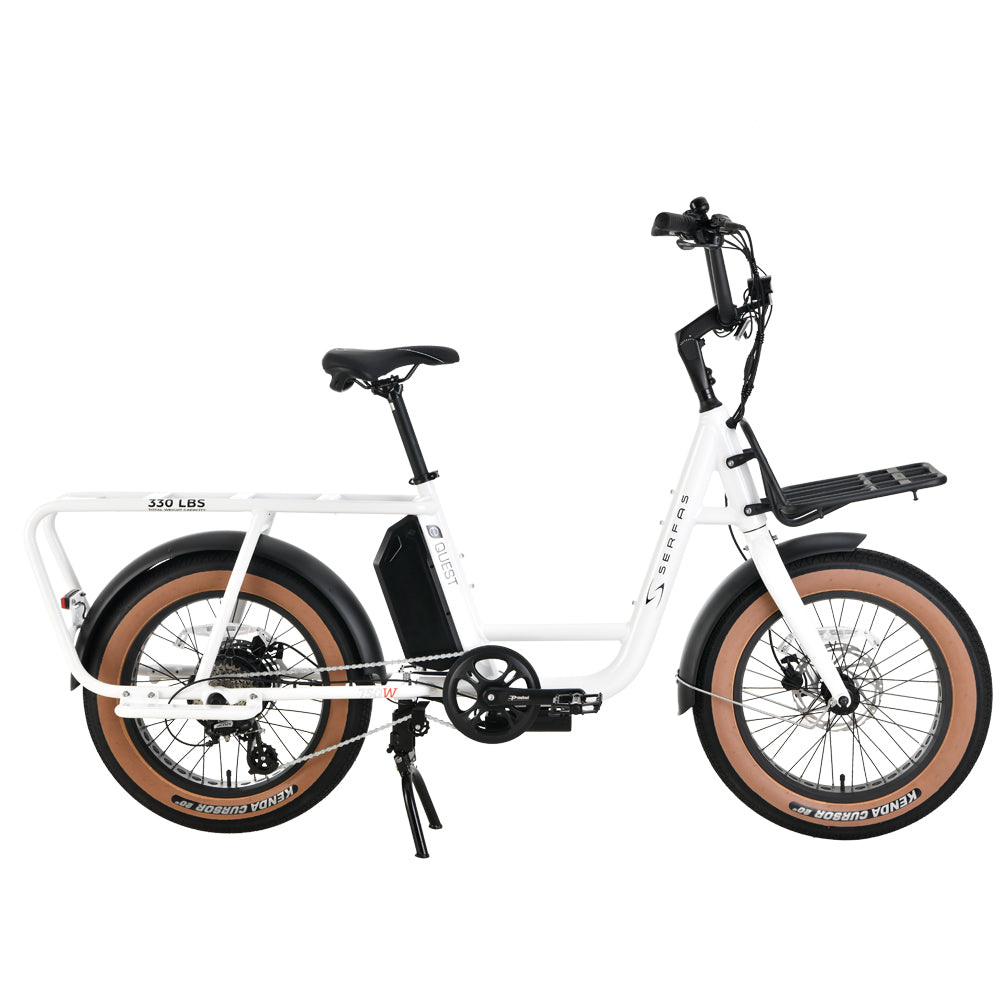

The Serfas QUEST has a 750W rear hub motor that provides a max speed of 28mph.  The frame design includes an extended wheel base and integrated rear cargo rack with a total max load capacity of 330lbs.

20in wheels with 4.0in tires provide stability while fully loaded.  Travel range varies by terrain and rider/cargo weight.  Riders can expect to get around 35-40 miles per charge.
