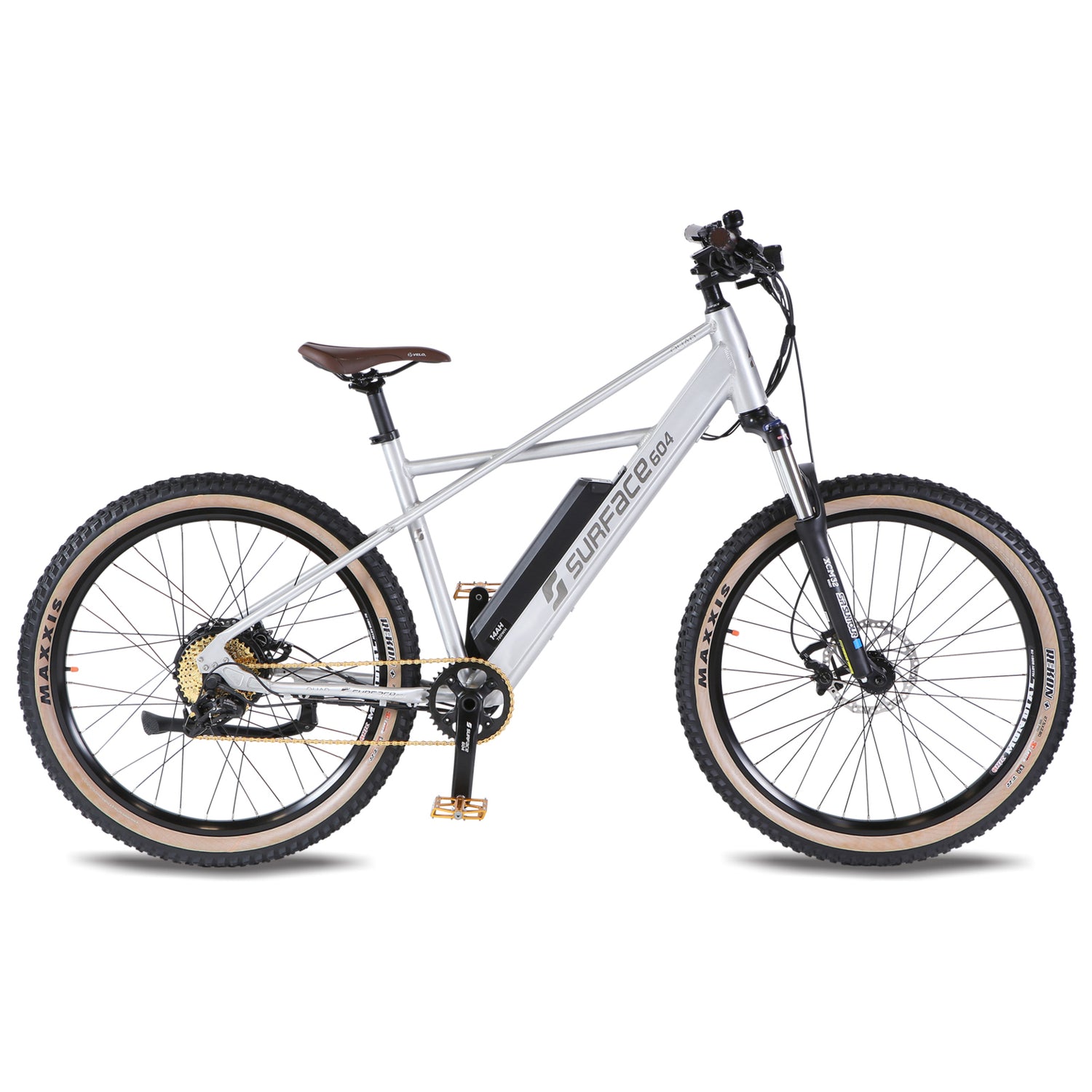

Surface 604

Surface 604 - Quad

Surface 604 - Quad

Size

MOTOR

eMTB Specific 500W (Peaks At 750W) Bafang Geared Hub Brushless Motor

 TORQUE

65Nm of Torque

THROTTLE

Thumb Push Activated Throttle

CONTROLLER

SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller

TOP SPEED

20mph (32kmh)*, Comes as Class 2
(Unlocked) 30mph (48kmh), as Class 3

BATTERY

Included: 48V 14Ah / 672Wh
Samsung lithium-ion 18650 cells
Upgrade option: 48V 20Ah / 960Wh
Samsung lithium-ion 21700 cells

BATTERY RANGE

Upto 45mi (72km) with a 48V14Ah Battery
Upto 65mi (105km) with a 48V20Ah Battery

BATTERY CHARGE TIME

3-4 Hours for a Full Charge from Empty

DISPLAY TYPE

SURFACE604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2022

LIGHTS

BÜCHEL LED Headlight, Pre-Wired To Connect Rear Stop Light

FORK

SR SUNTOUR XCM 32. 29er, 100mm with Axle Thru Hub

DERAILLEUR

SRAM X5 9-Speed 1-Piece Forged CNC with 2 Sealed Bearings

CASSETTE

SRAM 12-34T

SHIFT LEVERS

SRAM X5 Trigger Shift

BRAKES

TEKTRO Dorado eMTB Specific Hydraulic Disc, Quad Piston, 180mm Rotor with Motor Inhibitors

CRANK SET

SAMOX 38T Front Sprocket, 170mm Crank Arms

ROTORS

180mm Front/Rear x 2.34mm Thick

BOTTOM BRACKET

SAMOX Sealed Bottom Bracket

FRAME TYPE

Tapered Headtube, Custom Reinforced Battery Mounts
Internal Cable Routing, Post Mount Brakes

FRAME MATERIAL

6061 Aluminum Alloy

STEM

eMTB specific Ergotec Bass 31.8mm

HEAD SET

SAMOX Tapered with Sealed Bearings 1 1/8" - 1 1/2"

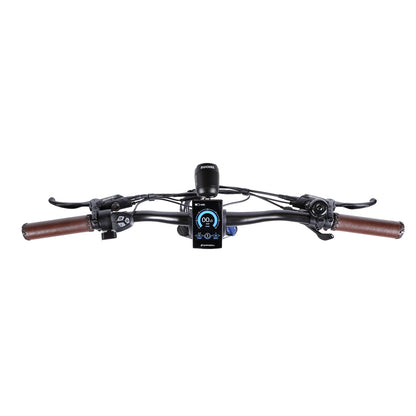

HANDLEBAR

PROMAX Aluminum, 60mm Rise With 9° Backsweep and 720mm Wide

PEDALS

WELLGO Platform, with Die Casting Body, Gold Color

CHAIN

KMC 9-Speed, Gold Color

SEAT POST DIAMETER

30.4mm

SADDLE

Velo Ergonomic Streamlined Design, Brown

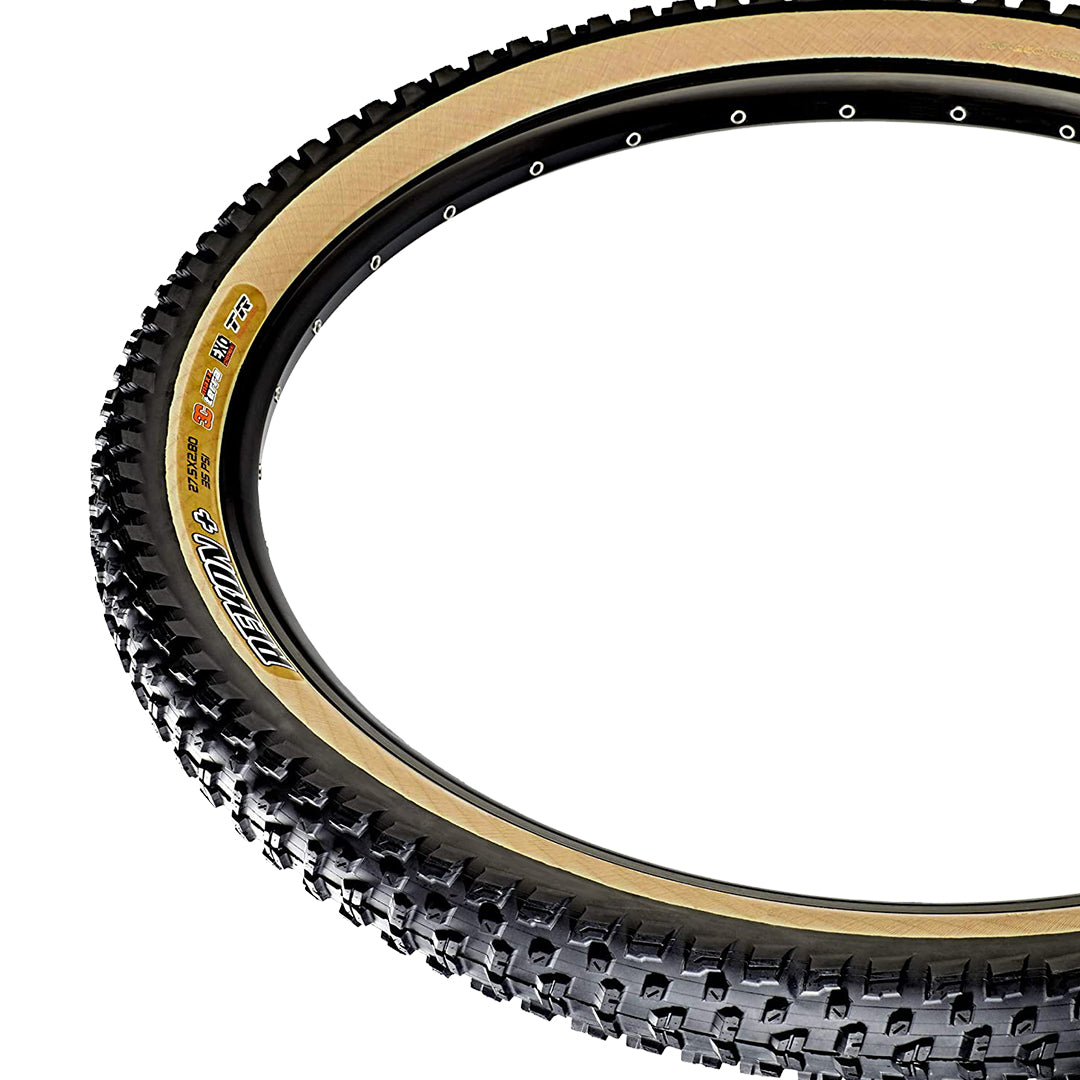

WHEELS/TIRE

MAXXIS REKON+ 27.5” x 2.8” Skinwall tires (3C, Exo casing tech)

RIMS

Aluminum Alloy Double Wall Rim, 27.5″x13Gx36H

FRONT HUBS

1-Piece Forged CNC with 2 Sealed Bearings, Cro-Mo Axle and Alloy QR

STANDOVER HEIGHT

Small-Medium: 28.5” (724mm)
Medium-Large: 30” (762mm)

NET WEIGHT (INCLUDING BATTERY)

27.67KG/61lb (14AH)
29.55KG/65lbs (20AH)

BATTERY WEIGHT

14AH battery 3.45KG/7.5lbs
20AH battery 4.65KG/10lbs

WEIGHT CAPACITY

285lbs (130kg)
